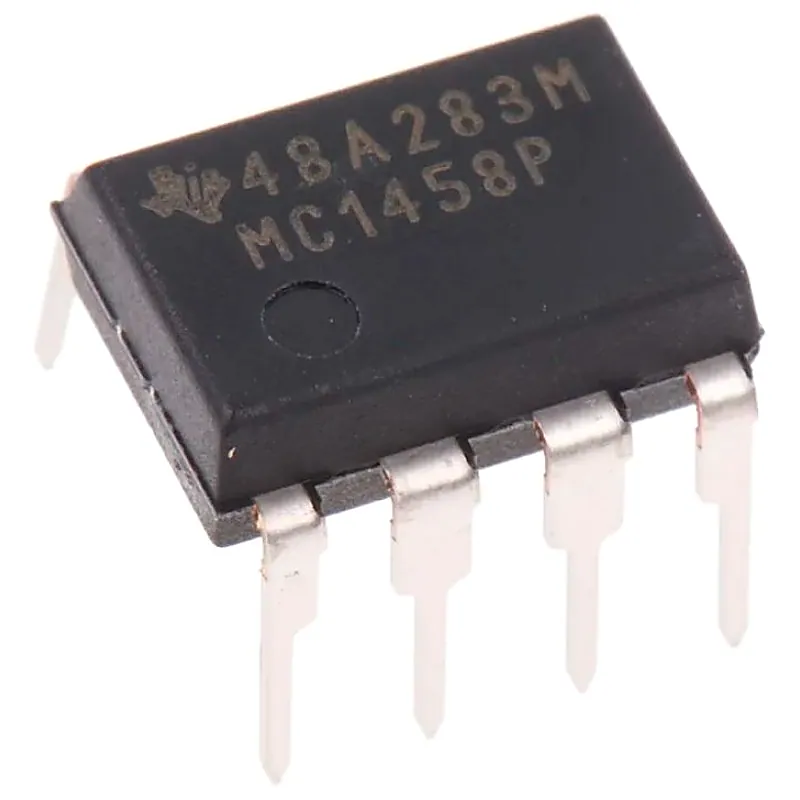

MC1458 - Dual Channel Operational Amplifier Package IC DIP-8 Package
MC1458 - Dual Channel Operational Amplifier Package IC DIP-8 Package
The MC1458 is a high-performance, monolithic, dual operational amplifier intended for a wide range of analog applications. The high gain and wide range of operating voltages provide superior performance in integrator, summing amplifiers, and general feedback applications Features:- Low power consump
+ 18% GST (added at checkout)
In stock — 353 units ready
- Low power consumption
- Large input voltage range
- No latch-up
- High gain
- Short-circuit protection
- No frequency compensation required
- Supply voltage : ±22
- Input Voltage : ±15
- Differential input voltage : ±30
- Output short-circuit duration : Infinite
- Power dissipation : 300mW
- Minimum Operating Temperature : 0°C
- Maximum Operating Temperature: + 70°C
- Ib – Input Bias Current: 500 nA
- Operating Supply Current: 3.4 mA
- Mounting Style: Through Hole
- Package/Case: PDIP-8
- Number of Channels: 2 Channel
- GBP – Gain Bandwidth Product: 1 MHz
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The MC1458 is a high-performance, monolithic, dual operational amplifier intended for a wide range of analog applications. The high gain and wide range of operating voltages provide superior performance in integrator, summing amplifiers, and general feedback applications Features:- Low power consumption Large input voltage range No latch-up High gain Short-circuit protection No frequency compensation required Specifications:- Supply voltage : ±22 Input Voltage : ±15 Differential input voltage : ±30 Output short-circuit duration : Infinite Power dissipation : 300mW Minimum Operating Temperature : 0°C Maximum Operating Temperature: + 70°C Ib – Input Bias Current: 500 nA Operating Supply Current: 3.4 mA Mounting Style: Through Hole Package/Case: PDIP-8 Number of Channels: 2 Channel GBP – Gain Bandwidth Product: 1 MHz Package Includes:- 1 x MC1458 - Dual Channel Operational Amplifier Package IC DIP-8 Package
