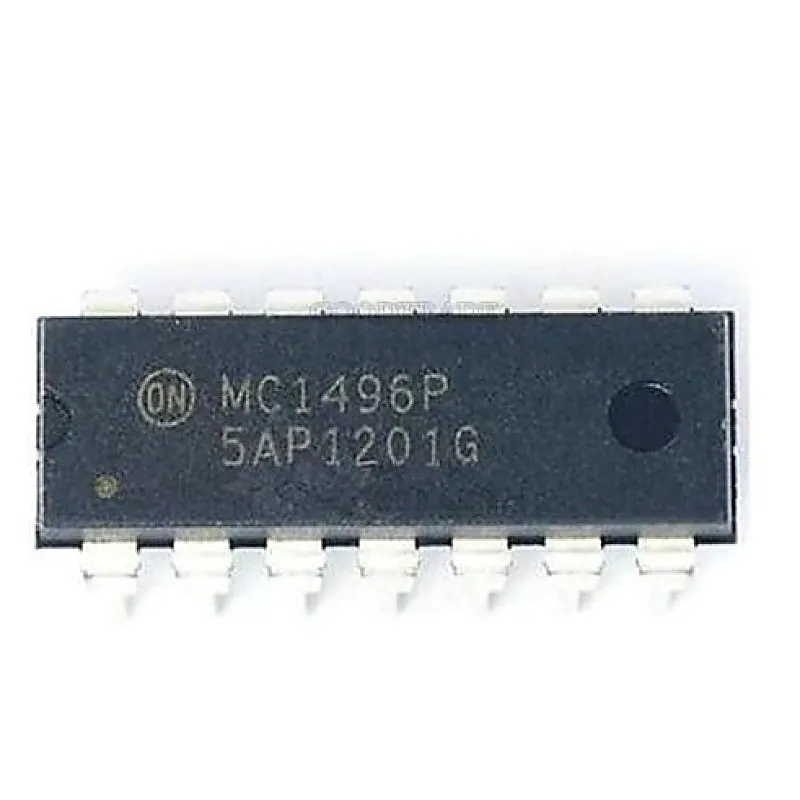

MC1496 Balanced Modulator/Demodulator IC DIP-14 Package

These devices were designed for use where the output voltage is a product of an input voltage (signal) and a switching function (carrier). Typical applications include the suppressed carrier and amplitude modulation, synchronous detection, FM detection, phase detection, and chopper applications. See ON Semiconductor Application Note AN531 for additional design information. Features:- Excellent Carrier Suppression: −65 dB typ @ 0.5 MHz, −50 dB typ @ 10 MHz Adjustable Gain and Signal Handling Balanced Inputs and Outputs High Common Mode Rejection −85 dB Typical This Device Contains 8 Active Transistors Pb−Free Package is Available Specification:- Parameter Value Applied Voltage 30 V Differential Input SignaL 5 V Maximum Bias Current 10 mA Thermal Resistance, Junction−to−Air Plastic Dual In−Line Package 100 °C/W Operating Ambient Temperature Range 0 to +70°C Storage Temperature Range −65 to +150°C Human Body Model (HBM), Machine Model (MM) 2000V, 400V Related Document:- MC1496 IC Data Sheet
