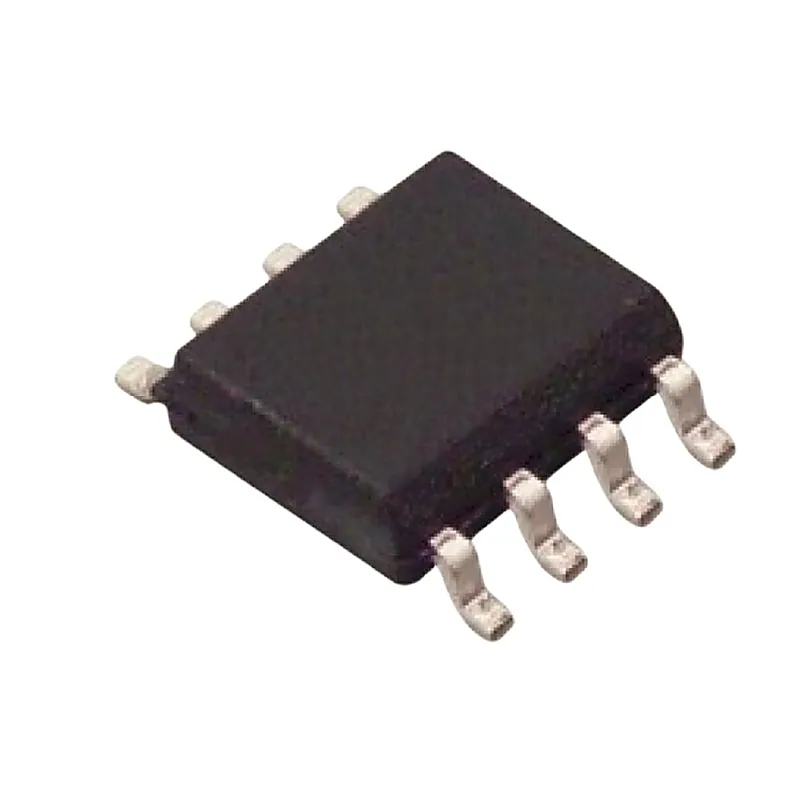

MC33172 IC - (SMD Package) - Low Power Dual Bipolar Operational Amplifiers IC
MC33172 IC - (SMD Package) - Low Power Dual Bipolar Operational Amplifiers IC
The MC33172 series are dual bipolar operational amplifiers offering both low consumption (200 µA/Amp) and good speed (2.1 MHz, 2 V/µs).Moreover, the input common mode range extends down to the lower supply rail, allowing single supply operation from +4 V to +44 V. Features :- Good consumption/speed
+ 18% GST (added at checkout)
In stock — 1644 units ready
- Good consumption/speed ratio: only 200 µA for 2.1 MHz, 2 V/µs
- Single (or dual) supply operation from +4 V to +44 V (±2 V to ±22V)
- Wide input common mode mode voltage range including VCC-
- Low level output voltage close to VCC- : 100 mV typical
- Pin-to-pin compatible with standard dual operational amplifiers
- Power Supply Voltage : +22V
- Operating free-air temperature range : 40 to 105°C
- Thermal resistance junction to ambient : 85°C/W
- Junction temperature : 150°C
- Storage temperature : -65 to 150°C
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The MC33172 series are dual bipolar operational amplifiers offering both low consumption (200 µA/Amp) and good speed (2.1 MHz, 2 V/µs).Moreover, the input common mode range extends down to the lower supply rail, allowing single supply operation from +4 V to +44 V. Features :- Good consumption/speed ratio: only 200 µA for 2.1 MHz, 2 V/µs Single (or dual) supply operation from +4 V to +44 V (±2 V to ±22V) Wide input common mode mode voltage range including VCC- Low level output voltage close to VCC- : 100 mV typical Pin-to-pin compatible with standard dual operational amplifiers Specifications :- Power Supply Voltage : +22V Operating free-air temperature range : 40 to 105°C Thermal resistance junction to ambient : 85°C/W Junction temperature : 150°C Storage temperature : -65 to 150°C Package Includes :- 1 X MC33172 IC - (SMD Package) - Low Power Dual Bipolar Operational Amplifiers IC
