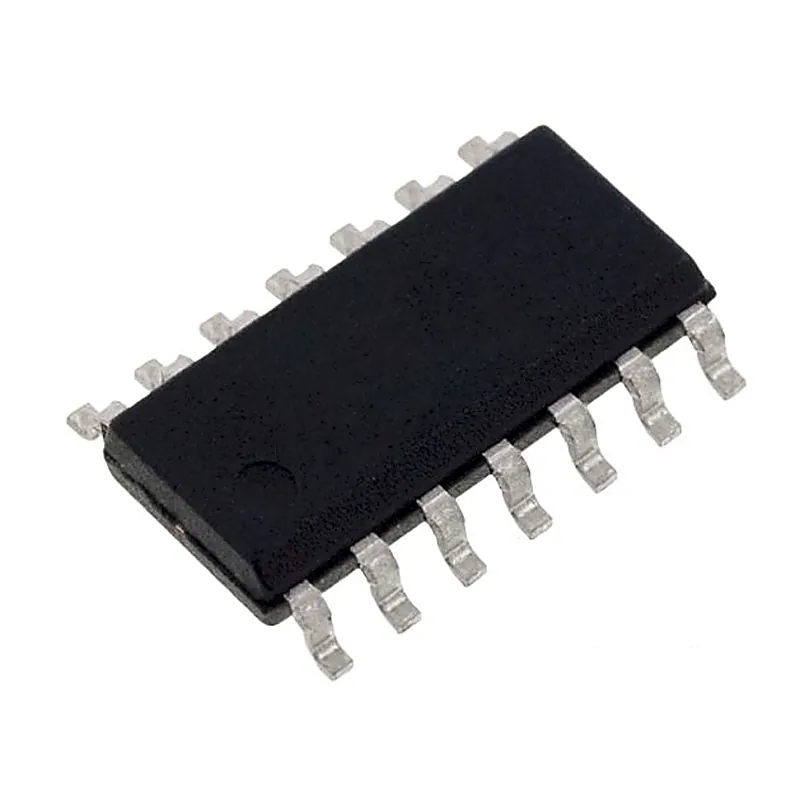

MC33174 IC - (SMD Package) - Low Power Quad Bipolar Operational Amplifiers IC
MC33174 IC - (SMD Package) - Low Power Quad Bipolar Operational Amplifiers IC
The MC33174 series are quad bipolar operational amplifier offering both low consumption (200µA) and good speed (2.1MHz, 2V/µs). Moreover the Input Common Mode Range extends down to the lower supply rail, allowing single supply operation from +4V to +44V. Features :- GOOD CONSUMPTION/SPEED RATIO : ON
+ 18% GST (added at checkout)
In stock — 1479 units ready
- GOOD CONSUMPTION/SPEED RATIO : ONLY 200µA FOR 2.1MHz, 2Vµs
- SINGLE (OR DUAL) SUPPLY OPERATION FROM +4V TO +44V (±2V TO ±22V)
- WIDE INPUT COMMON MODE MODE VOLTAGE RANGE INCLUDING VCC-
- LOW LEVEL OUTPUT VOLTAGE CLOSE TO VCC- : 100mV TYPICAL
- PIN TO PIN COMPATIBLE WITH STANDARD QUAD OP-AMPs
- Power Supply Voltage : +22V
- Operating free-air temperature range : 40 to 105°C
- Junction Temperature : 150°C
- Storage Temperature : -65 to 150°C
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The MC33174 series are quad bipolar operational amplifier offering both low consumption (200µA) and good speed (2.1MHz, 2V/µs). Moreover the Input Common Mode Range extends down to the lower supply rail, allowing single supply operation from +4V to +44V. Features :- GOOD CONSUMPTION/SPEED RATIO : ONLY 200µA FOR 2.1MHz, 2Vµs SINGLE (OR DUAL) SUPPLY OPERATION FROM +4V TO +44V (±2V TO ±22V) WIDE INPUT COMMON MODE MODE VOLTAGE RANGE INCLUDING VCC- LOW LEVEL OUTPUT VOLTAGE CLOSE TO VCC- : 100mV TYPICAL PIN TO PIN COMPATIBLE WITH STANDARD QUAD OP-AMPs Specifications :- Power Supply Voltage : +22V Operating free-air temperature range : 40 to 105°C Junction Temperature : 150°C Storage Temperature : -65 to 150°C Package Includes :- 1 X MC33174 IC - (SMD Package) - Low Power Quad Bipolar Operational Amplifiers IC
