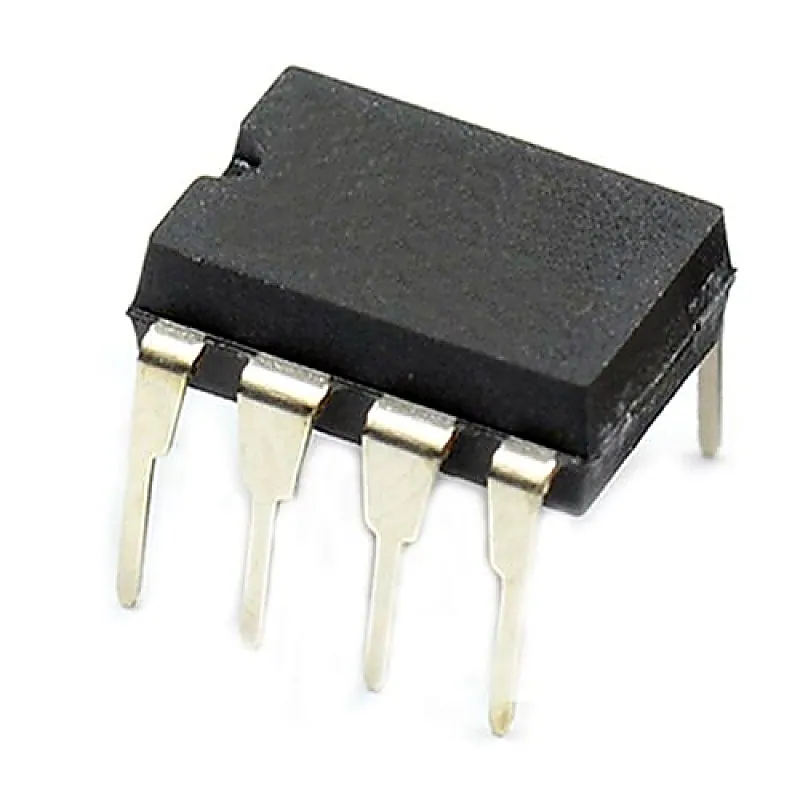

MC34002 JFET Input Operational Amplifiers IC DIP-8 Package

These low cost JFET input operational amplifiers combine two state–of–the–art analog technologies on a single monolithic integrated circuit. Each internally compensated operational amplifier has well matched high voltage JFET input devices for low input offset voltage. The BIFET technology provides wide bandwidths and fast slew rates with low input bias currents, input offset currents, and supply currents. The Motorola BIFET family offers single, dual and quad operational amplifiers which are pin–compatible with the industry standard MC1741, MC1458, and the MC3403/LM324 bipolar devices. The MC34001/34002/34004 series are specified from 0° to 70°C Features :- Input Offset Voltage Options of 5.0 mV and 10 mV Maximum Low Input Bias Current: 40 pA Low Input Offset Current: 10 pA Wide Gain Bandwidth: 4.0 MHz High Slew Rate: 13 V/µs Low Supply Current: 1.4 mA per Amplifier High Input Impedance: 1012 Ω High Common Mode and Supply Voltage Rejection Ratios: 100 dB Industry Standard Pinouts Specifications :- Power Supply Voltage : +18V Differential Input Voltage : +30V Input Voltage Range : +16V Operating Ambient Temperature Range : 0 to +70°C Operating Junction Temperature : 150°C Storage Temperature Range : –65 to +150°C Package Includes :- 1 X MC34002 JFET Input Operational Amplifiers IC DIP-8 Package
