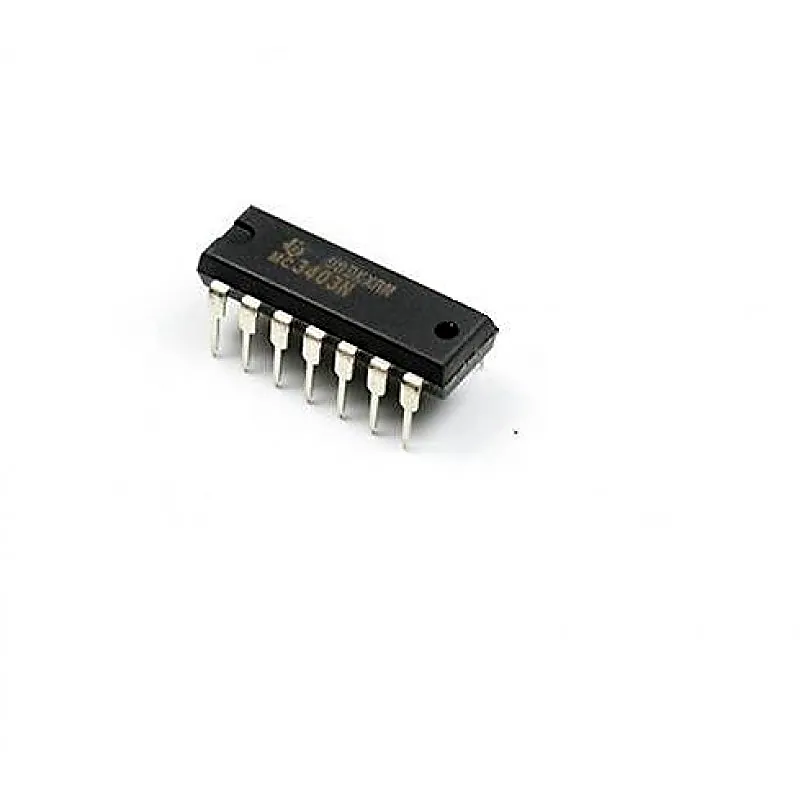

MC3403 Quad Low-Power Operational Amplifier IC DIP-14 Package

The MC3403 are quadruple operational amplifiers similar in performance to the µA741, but with several distinct advantages. They are designed to operate from a single supply over a range of voltages from 3 V to 36 V. Operation from split supplies also is possible, provided the difference between the two supplies is 3 V to 36 V. The common-mode input range includes the negative supply. Output range is from the negative supply to VCC – 1.5 V. Quiescent supply currents are less than one-half those of the µA741. The MC3403 is characterized for operation from 0°C. Features:- • Wide Range of Supply Voltages, Single Supply . . . 3 V to 36 V or Dual Supplies • Class AB Output Stage • True Differential Input Stage • Low Input Bias Current • Internal Frequency Compensation • Short-Circuit Protection • Designed to Be Interchangeable With Motorola MC3303 Specification:- Parameter Min Type Max Unit Input offset voltage 2 10 m V Temperature coefficient of input offset voltage 10 µV/°C Input offset current 30 50 n A 1 Unity-gain bandwid 1 1 M Total supply current 2.8 7 m A Related Document:- MC3403 IC Datasheet
