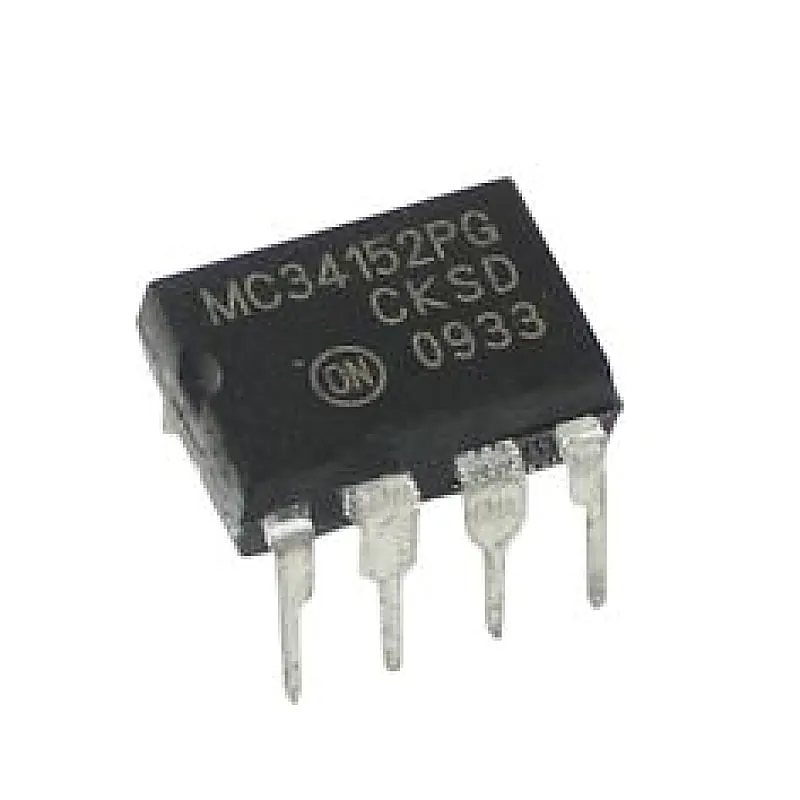

MC34152P MC34152 High Speed Dual MOSFET Driver IC DIP-8 Package

The MC34152 is dual non inverting high speed drivers specifically designed for applications that require low current digital signals to drive large capacitive loads with high slew rates. These devices feature low input current making them CMOS/LSTTL logic compatible, input hysteresis for fast output switching that is independent of input transition time, and two high current totem pole outputs ideally suited for driving power MOSFETs. Also included is an under voltage lockout with hysteresis to prevent system erratic operation at low supply voltages. Typical applications include switching power supplies, dc−to−dc converters, capacitor charge pump voltage doublers/inverters, and motor controllers. This device is available in dual−in−line packages. Features:- Two Independent Channels with 1.5 A Totem Pole Outputs Output Rise and Fall Times of 15 ns with 1000 pF Load CMOS/LSTTL Compatible Inputs with Hysteresis Undervoltage Lockout with Hysteresis Low Standby Current Efficient High Frequency Operation Enhanced System Performance with Common Switching Regulator Control ICs NCV Prefix for Automotive and Other Applications Requiring Site and Change Controls These are Pb−Free and Halide−Free Devices Specification:- Rating Symbol Value Unit Power Supply Voltage VCC 20 V Logic Input VIN −0.3 to VCC V Gate Drive Output-Source Current IO 1.5 A Maximum Power Dissipation @ TA = 50°C PD 0.56 W Operating Junction Temperature Tj 150 °C Operating Ambient Temperature Ta 0 to +70 °C Storage Temperature Range Tstg −65 to +150 °C Human Body Model (HBM), Machine Model (MM), Charged Device Model (CDM) ESD 2000, 200, 1500 V Related Document:- MC34152 IC Data Sheet
