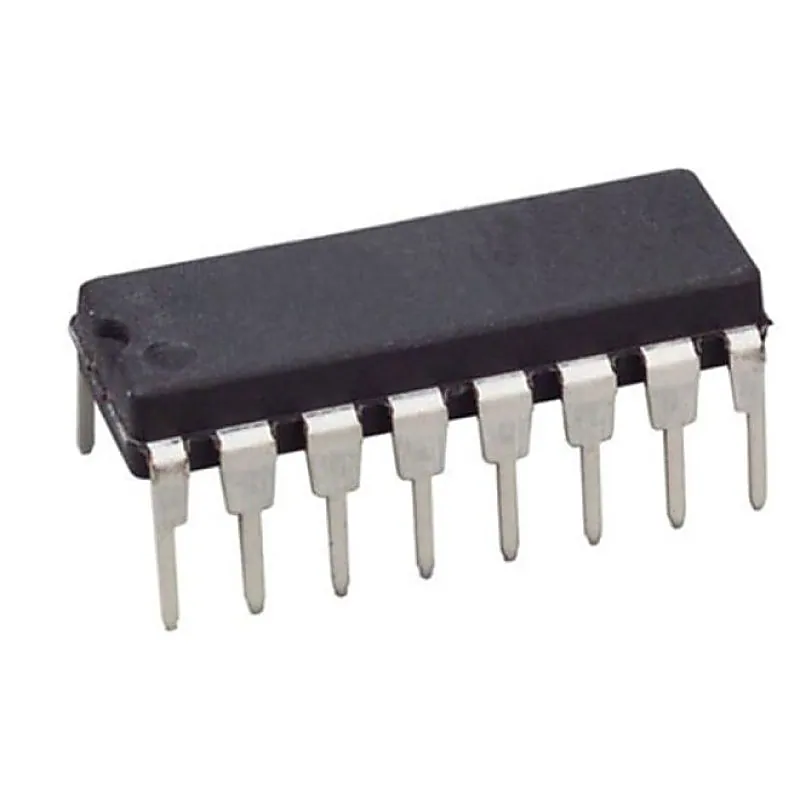

MC3448 Quad Three-State Bus Transceiver IC DIP-16 Package

This bidirectional bus transceiver is intended as the interface between TTL or MOS logic and the IEEE Standard Instrumentation Bus (488-1978, often referred to as GPIB). The required bus termination is internally provided. Each driver/receiver pair forms the complete interface between the bus and an instrument. Either the driver or the receiver of each channel is enabled by its corresponding Send/Receive input with the disabled output of the pair forced to a high impedance state. An additional option allows the driver outputs to be operated in an open collector(1) or active pull-up configuration. The receivers have input hysteresis to improve noise margin, and their input loading follows the bus standard specifications Features :- Four Independent Driver/Receiver Pairs Three-Stats Outputs High Impedance Inputs Receiver Hysteresis-600 mV (Typ) Fast Propagation Times-15-20 ns (Typ) TTL Compatible Receiver Outputs Single +5 Volt Supply Open Collector Driver Output Option(1) Power Up/Power Down Protection (No Invalid Information Transmitted to Bus) No Bus Loading When Power Is Removed From Device Terminations Provided: Termination Removed When device is unpowered Specifications :- Power Supply Voltage : 7.0Vdc Input Voltage : 5.5Vdc Driver output Current : 150mA Junction Temperature : 150mA Operating ambient Temperature Range : 0 to +70°C Storage Temperature Range : -65 to +150°C Package Includes :- 1 X MC3448 Quad Three-State Bus Transceiver IC DIP-16 Package
