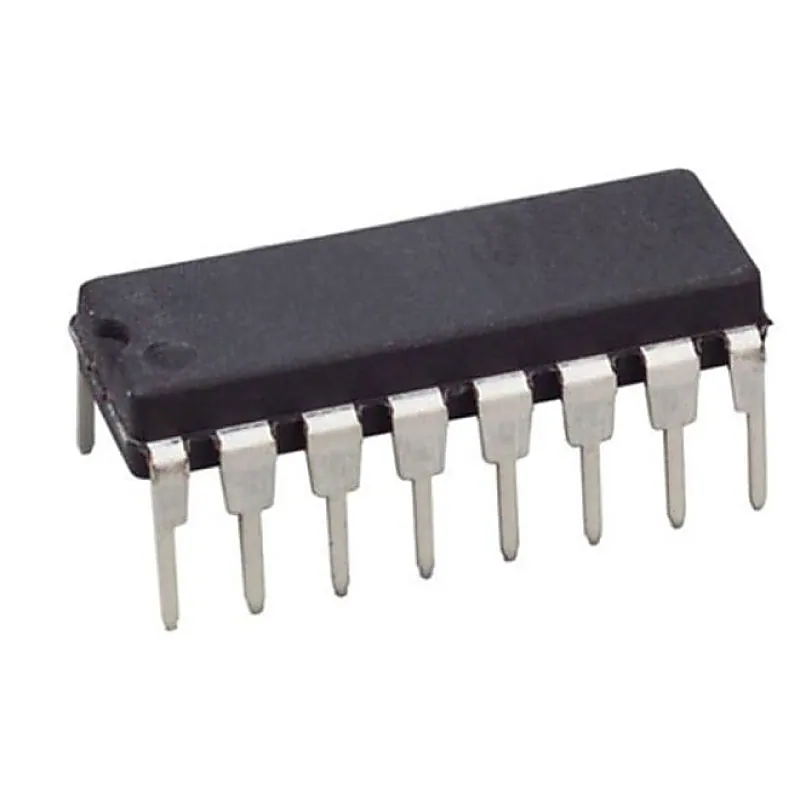

MC3486 Quadruple Differential Line Receiver with 3-State Outputs IC DIP-16 Package

The MC3486 is a monolithic quadruple differential line receiver designed to meet the specifications of ANSI Standards TIA/EIA-422-B and TIA/EIA-423-B and ITU Recommendations V.10 and V.11. The MC3486 offers four independent differential-input line receivers that have TTL-compatible outputs. The outputs utilize 3-state circuitry to provide a high-impedance state at any output when the appropriate output enable is at a low logic level. The MC3486 is designed for optimum performance when used with the MC3487 quadruple differential line driver. It is supplied in a 16-pin package and operates from a single 5-V supply. The MC3486 is characterized for operation from 0°C to 7 Features :- Meets or Exceeds the Requirements of ANSI Standards EIA/TIA-422-B and EIA/TIA-423-B and ITU Recommendations V.10 and V.1 3-State, TTL-Compatible Output Fast Transition Times Operates From Single 5-V Supply Designed to Be Interchangeable With Motorola MC3486 Specifications :- Supply voltage : 4.75V - 5.25V Common-mode input voltage Max : +7V Differential input voltage Max : +6V High-level enable input voltage Min : 2V Low-level enable input voltage Max : 0.8V Operating free-air temperature Max : 70°C Package Includes :- 1 X MC3486 Quadruple Differential Line Receiver with 3-State Outputs IC DIP-16 Package
