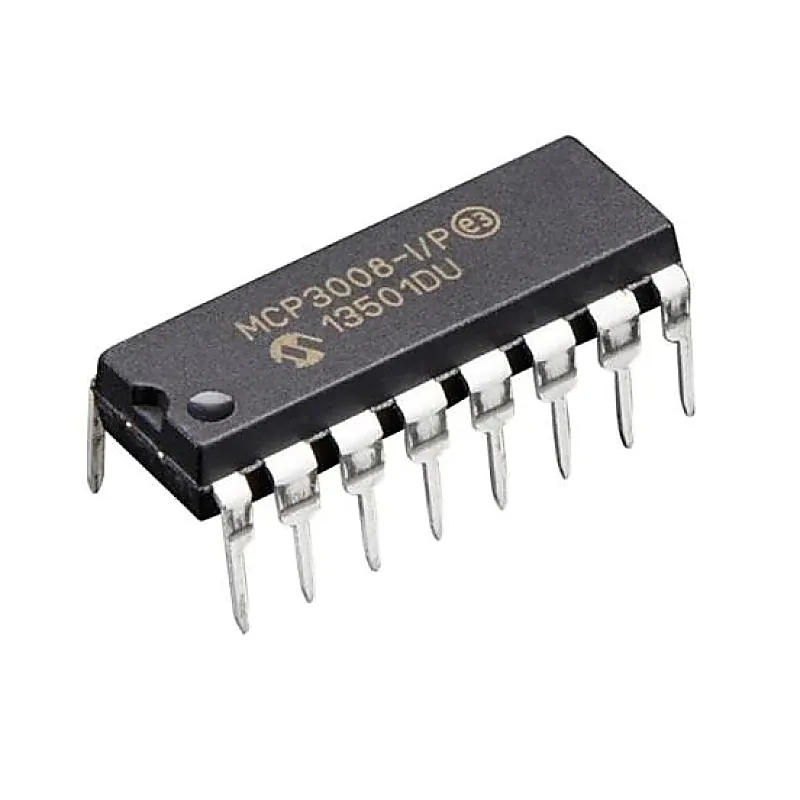

MCP3008 8-Channel 10-Bit A/D Converter with SPI Interface IC DIP-16 Package

The Microchip Technology Inc. MCP3008 devices are successive approximation 10-bit Analogto-Digital (A/D) converters with on-board sample and hold circuitry. The MCP3008 is programmable to provide four pseudo-differential input pairs or eight single-ended inputs. Differential Non linearity (DNL) and Integral Non linearity (INL) are specified at ±1 LSB. Communication with the devices is accomplished using a simple serial interface compatible with the SPI protocol. The devices are capable of conversion rates of up to 200 ksps. The MCP3008 devices operate over a broad voltage range (2.7V - 5.5V). Low-current design permits operation with typical standby currents of only 5 nA and typical active currents of 320 µA. The MCP3008 is offered in 16- pin PDIP and SOIC packages. Features:- • 10-bit resolution • ± 1 LSB max DNL • ± 1 LSB max INL • 8 (MCP3008) input channels • Analog inputs programmable as single-ended or pseudo-differential pairs • On-chip sample and hold • SPI serial interface (modes 0,0 and 1,1) • Single supply operation: 2.7V - 5.5V • 200 ksps max. sampling rate at VDD = 5V • 75 ksps max. sampling rate at VDD = 2.7V • Low power CMOS technology • 5 nA typical standby current, 2 µA max. • 500 µA max. active current at 5V • Industrial temp range: -40°C to +85°C • Available in PDIP, SOIC and TSSOP packages Specifications:- Parameters Specification VDD 7.0V All Inputs and Outputs w.r.t. VSS – 0.6V to VDD + 0.6V Storage Temperature –65°C to +150°C Ambient temperature with power applied –65°C to +150°C Soldering temperature of leads (10 seconds) +300°C ESD Protection On All Pins (HBM) ≥ 4 kV Related Document:- MCP3008 IC Datasheet
