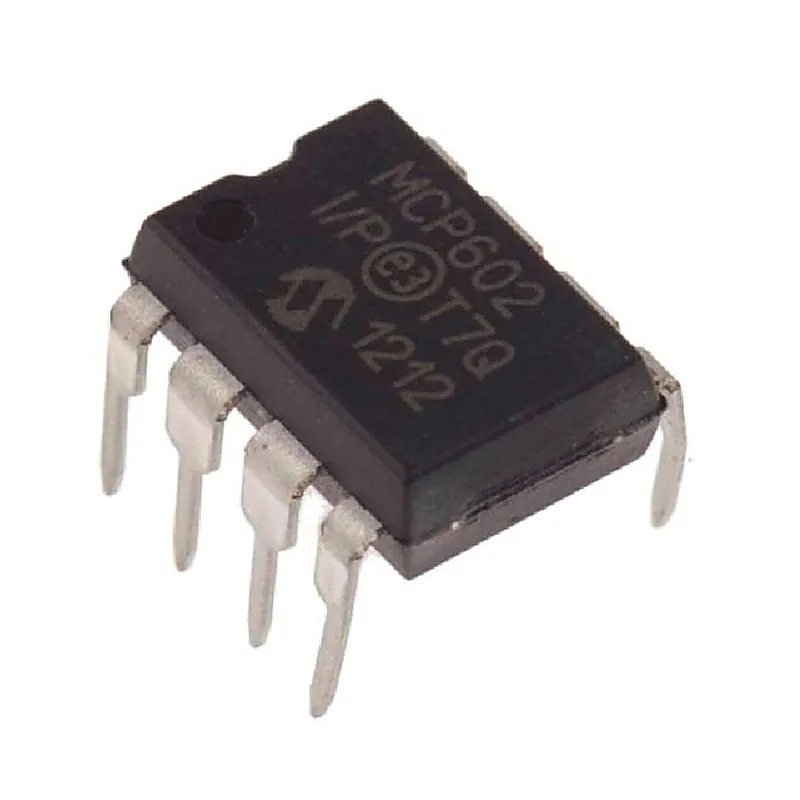

MCP602-I/P - 2.7V to 5V Single Supply Dual Operational Amplifier IC DIP-8 Package

The Microchip Technology Inc. MCP601/1R/2/3/4 family of low-power operational amplifiers (op amps) are offered in single (MCP601), single with Chip Select (CS) (MCP603), dual (MCP602), and quad (MCP604) configurations. These op amps utilize an advanced CMOS technology that provides low bias current, high speed operation, high open-loop gain, and rail-to-rail output swing. This product offering operates with a single supply voltage that can be as low as 2.7V while drawing 230 µA (typical) of quiescent current per amplifier. In addition, the common mode input voltage range goes 0.3V below ground, making these amplifiers ideal for single-supply operation. Features and Specifications:- Manufacturer Part No: MCP602-I/P Manufacturer: Microchip Technology Product Type: Op Amps – Operational Amplifier Voltage Gain dB: 115dB Number of Channels: 2 Channel Gain Bandwidth Product: 2.8 MHz Output Current per Channel: 22 mA Slew Rate: 2.3 V/us Input Offset Voltage: 2 mV Operating Temperature Range: -40°C ~ +85°C Input Bias Current: 60pA Operating Supply Current: 23uA Shutdown: No Shutdown Common Mode Rejection Ratio: 75 dB Input Voltage Noise Density: 29nV/sqrt Hz Input Noise Current Density: 0.0006pA/sqrt Hz Operating Supply Voltage: 2.7 V to 5.5 V Product: Operational Amplifiers Power Supply Rejection Ratio: 80 dB Mounting Style: Through Hole Package/Case: DIP-8 Supply Type: Single Applications:- Portable Equipment A/D Converter Driver Photo Diode Pre-amp Analog Filters Data Acquisition Notebooks and PDAs Sensor Interface Package Includes:- 1 x MCP602-I/P - 2.7V to 5V Single Supply Dual Operational Amplifier IC DIP-8 Package
