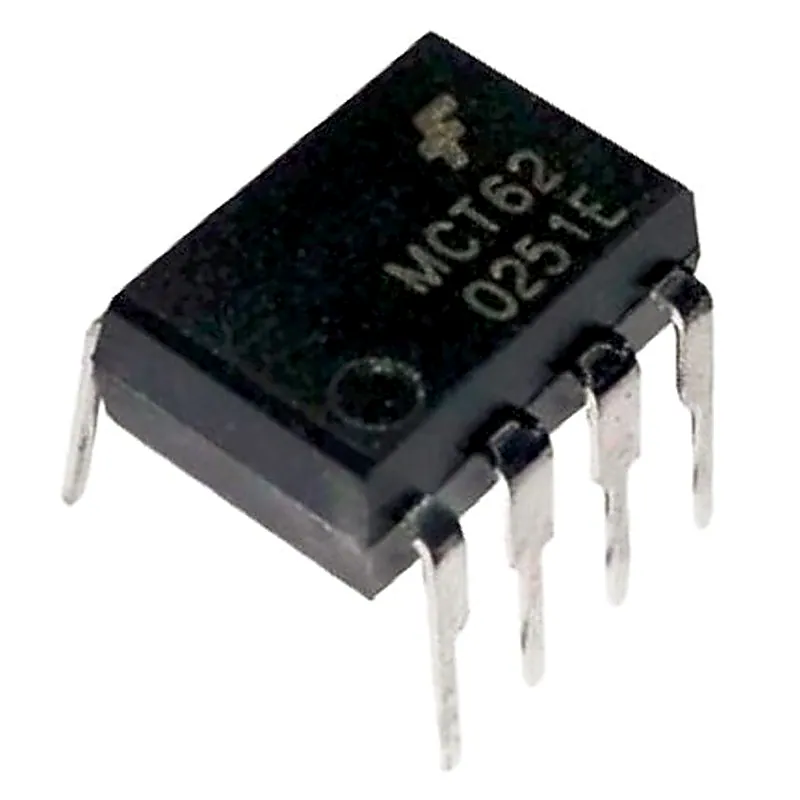

MCT62 IC - Dual Channel Phototransistor Optocoupler IC

The MCT62 Optocouplers have two channels for density applications. For four channel applications, two-packages fit into a standard 16-pin DIP socket. Each channel is an NPN silicon planar photo transistor optically coupled to a gallium arsenide infrared emitting diode. Features:- • Two isolated channels per package • Two packages fit into a 16 lead DIP socket • Choice of three current transfer ratios • Underwriters Laboratory (U.L.) recognized File E90700 Applications:- • AC Line/Digital Logic – Isolate high voltage transients • Digital Logic/Digital Logic – Eliminate spurious grounds • Digital Logic/AC Triac Control – Isolate high voltage transients • Twisted pair line receiver – Eliminate ground loop feedthrough • Telephone/Telegraph line receiver – Isolate high voltage transients • High Frequency Power Supply Feedback Control – Maintain floating grounds and transients • Relay contact monitor – Isolate floating grounds and transients • Power supply monitor – Isolate transients Specification:- Symbol Parameter Value Unit IF Forward current 60 mA PD Power dissipation 100 mW VR Reverse Voltage 3 V Tstg Storage temperature range - 55 to + 150 °C TOPR Operating Temperature - 55 to + 150 °C TSOL Lead Solder Temperature 260 for 10 sec °C IF(pk) Forward Current – Peak (PW = 1µs, 300pps) 3 A IC Collector current 30 mA Related Document:- MCT62 IC Data Sheet
