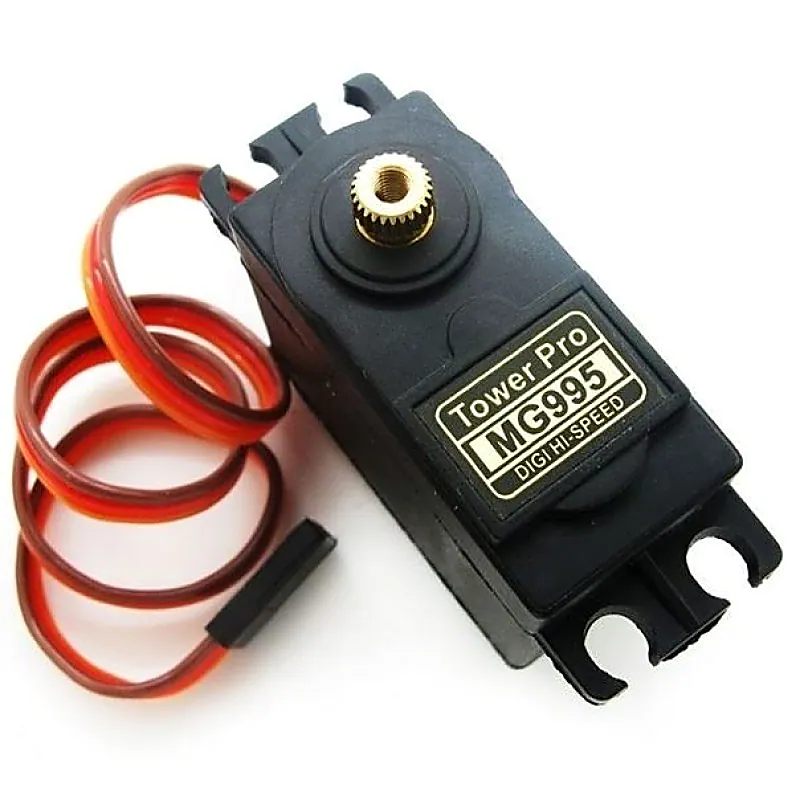

Tower Pro MG995 Metal Gear Servo Motor (180 Degree Rotation)

MG995 Metal Gear Servo Motor is a high-speed standard servo can rotate approximately 180 degrees (60 in each direction) used for airplane, helicopter, RC-cars and many RC model. Provides 10kg/cm at 4.8V, and 12kgcm at 6V. It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces. They are packed within a tight sturdy plastic case which makes them water and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too. Wire Description:- RED – Positive Brown – Negative Orange – Signal Specification :- Weight : 55g Dimension : 40.7 × 19.7 × 42.9 mm Operating Speed (4.8V no load): 20sec / 60 deg Operating Speed (6.0V no load): 16sec / 60 deg ( no load) Stall Torque (4.8V): 10kg/cm Stall Torque (6.0V): 12kg/cm Operation Voltage : 4.8 - 7.2Volts Gear Type: All Metal Gears Stable and shock proof double ball bearing design Dead band width: 5 µs Temperature range: 0 ºC – 55 ºC. Control System: Analog Operating Angle: 120degree Required Pulse: 900us-2100us Features:- The connection cable is thicker. Equips high-quality motor. High resolution Accurate positioning Fast control response Constant torque throughout the servo travel range Excellent holding power
