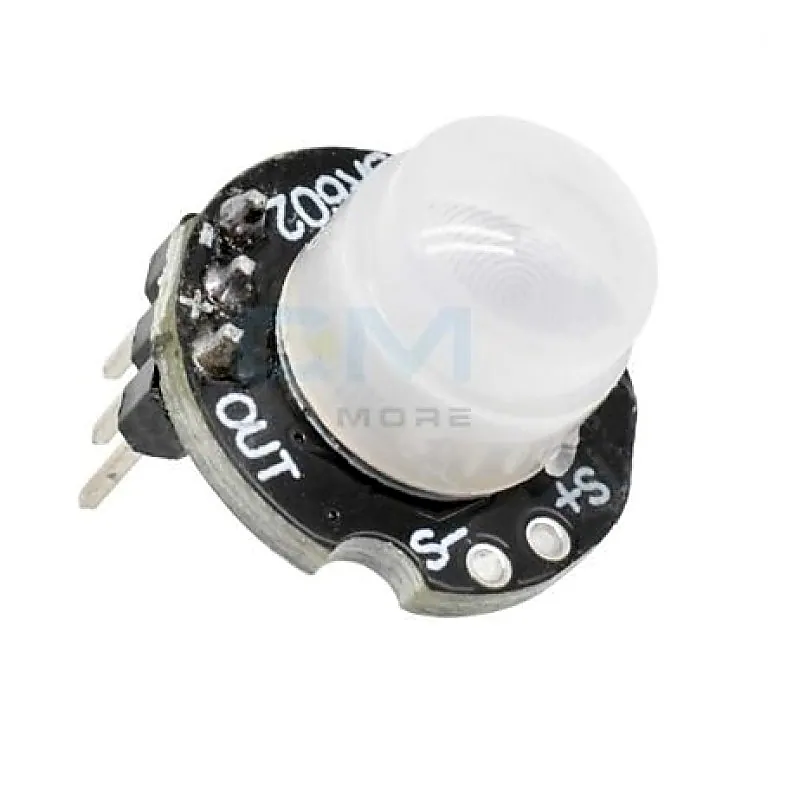

MH-SR602 MINI Motion Sensor Detector Module For Arduino

MH-SR602 MINI Motion Sensor Detector Module is used as a Pyroelectric human body infrared sensor module. This module has a sensing distance of up to 5 meters. It Can be used for body sensor lights, alarms, security. Note: The high-level time of the output of this product is adjustable, 2.5 seconds to 1 hour, the output time set at the factory. It is 2.5 seconds, and you can change one chip resistor if you need to change it. Please read the resistance value corresponding to the typical delay time. Features: High sensitivity Fast response Small static power consumption Small size Easy to install Package Includes: 1 x MH-SR602 MINI Motion Sensor Detector Module For Arduino Specifications :- Model SR602 Sensing Distance 3M-5M Delay Adjustable Power supply DC 3.3V-15V Output high level, H=3.3V, L=0V Quiescent current 20uA Color Black Dimension(mm) 15 x 15 x 20 Weight(g) 20 Shipment Weight 0.022 kg Shipment Dimensions 5 5 2 cm
