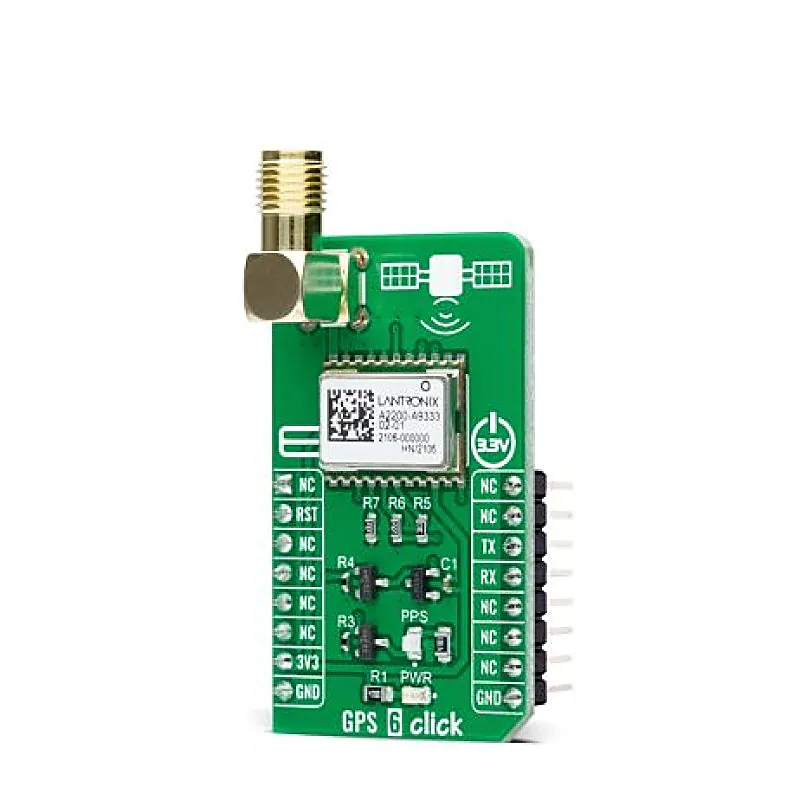

Mikroe GPS 6 Click Board

GPS 6 Click is a compact add-on board that provides users with positioning, navigation, and timing services. This board features theA2200-A, a GPS receiver module that enables fast acquisition and tracking with SiRFstar IV technology fromLantronix. This small-form-factor module operates with a frequency of 1,575GHz with accuracy from 2 up to 2.5m and fully addresses the demand for the lowest power consumption. The removal of jammers guarantees operation even in hostile environments. High sensitivity during acquisition or while tracking allows for use in many different backgrounds and under the most challenging operating conditions. This Click board is suitable for a broad spectrum of GPS applications where performance, cost, and time to market are prime considerations. GPS 6 Click is supported by amikroSDKcompliant library, which includes functions that simplify software development. ThisClick boardcomes as a fully tested product, ready to be used on a system equipped with themikroBUSsocket. Applications : It can be used for a broad spectrum of GPS applications where performance, cost, and time to market are prime considerations Overview: Features: Type GPS/GNSS Input Voltage 3.3V Interface: UART Compatibility: Micro-BUS On-board modules: A2200-A high-performance Global Positioning System (GPS) module from Lantronix Complete GPS module, Direct passive antenna support Jamming detection and removal, Best acquisition and tracking sensitivity and low power consumption. Useful Links: MikroBUS MikroSDK GPS 6 click example on Libstock GPS 6 click 2D and 3D files GPS 6 click schematic MAX809 datasheet A2200-A datasheet Package Includes: 1 x Mikroe GPS 6 Click
