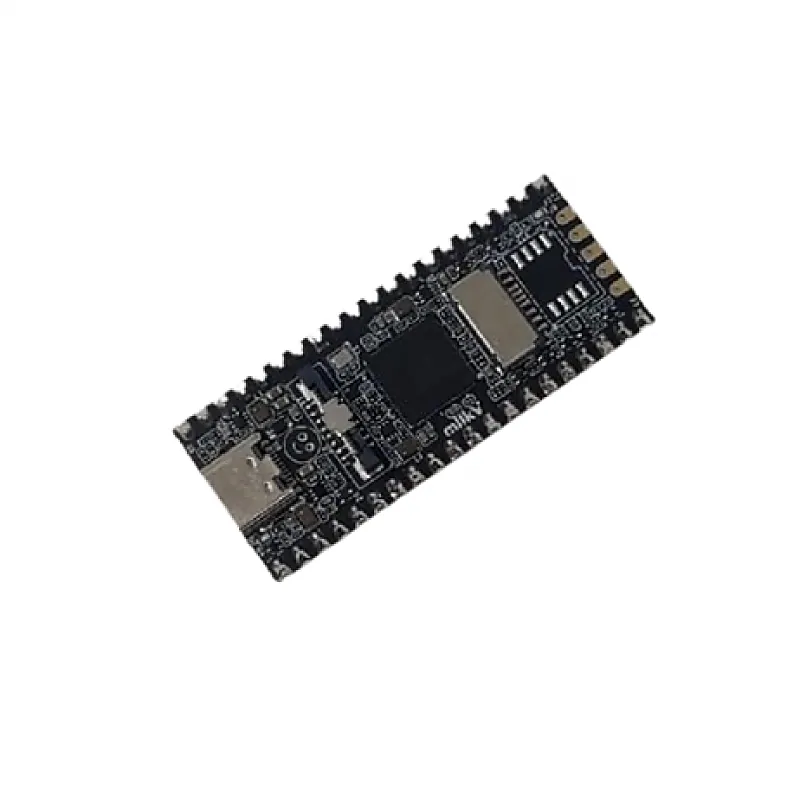

Milk-V Duo compact Embedded Development Board with 256M RAM with GPIO Header

The Milk-V Duo 256M is an upgraded version of Duo with a memory boost to 256M, catering to applications demanding larger memory capacities. It features the SG2002 computing series chip, elevating computational power to 1.0TOPS@INT8. It enables seamless switching between RISC-V/ARM architectures and supports simultaneous operation of dual systems. Additionally, it includes an array of rich GPIO interfaces such as SPI, UART, suitable for a wide range of hardware development in edge intelligent monitoring, including IP cameras, smart peephole locks, visual doorbells, and more. Note: Actual product may vary in terms of Color. Features : 1GHz and 700MHz RISC-V C906 processors Optional T-Head C906@1GHz or Cortex-A53@1GHz Integrated1TOPS@INT8TPU for smart detection. SIP DRAM 256MB Supports H.264/H.265 video encoding, up to5M@30fps. Compatible with high-definition CMOS sensors. Support Multiple storage devices via SPI-NOR, SPI-NAND, eMMC5.0, 2 x SDIO3.0 interfaces Comprehensive ISP features for image optimization. Partial OpenCV library support with CV hardware acceleration. 16-bit audio codec with built-in mic input and output functions. 2L MIPI DSI 5M@30fps 4L or 2L+2L MIPI CSI 5M@30fps Flexible network configurations with 1 Ethernet PHY. QFN88 Package Includes: 1 x Milk-V Duo compact Embedded Development Board with 256M RAM with GPIO Header
