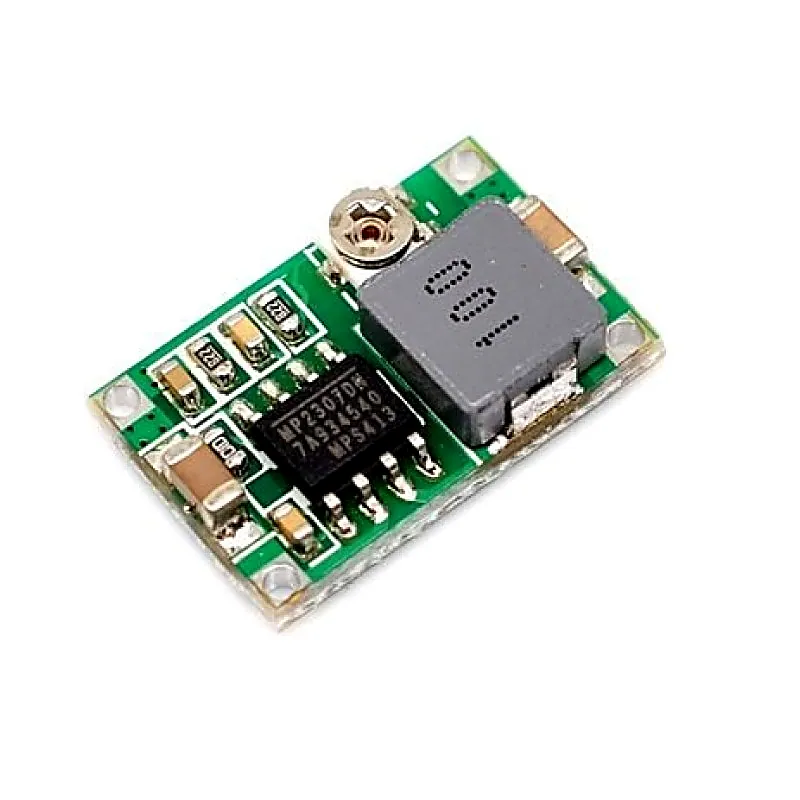

Mini 360 Step Down Buck Converter Power Supply Module

Mini 360 Step-Down Buck Converter Power Module use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient. This Module can be use as a DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply, various right size and weight for demanding applications (such as aviation models, etc. Features: Module: Non-isolated step-down module (BUCK) Rectification: Synchronous rectification Built-in 160C thermal shutdown Output ripple: 30mV (no-load) Package Includes: 1 x Mini 360 Step-Down Buck Converter Power Supply Module Specifications: Regulator IC MPS MP2307DN Input Voltage Range 4.75 23VDC Selectable Output Voltage 1.0 17VDC Rated Current 1.8A Continuous 3A Surge Current Maximum conversion efficiency 95% (5Vin, 3.3Vout ~200mA output) Switching Frequency 340kHz No-load output Ripple 30mV Load Regulation ±0.5% Voltage Regulation ±2.5% Operational Temperature Range(°C) -40 to +85 Length (mm) 17 Width (mm) 11 Height (mm) 3.8 Weight (gm) 2
