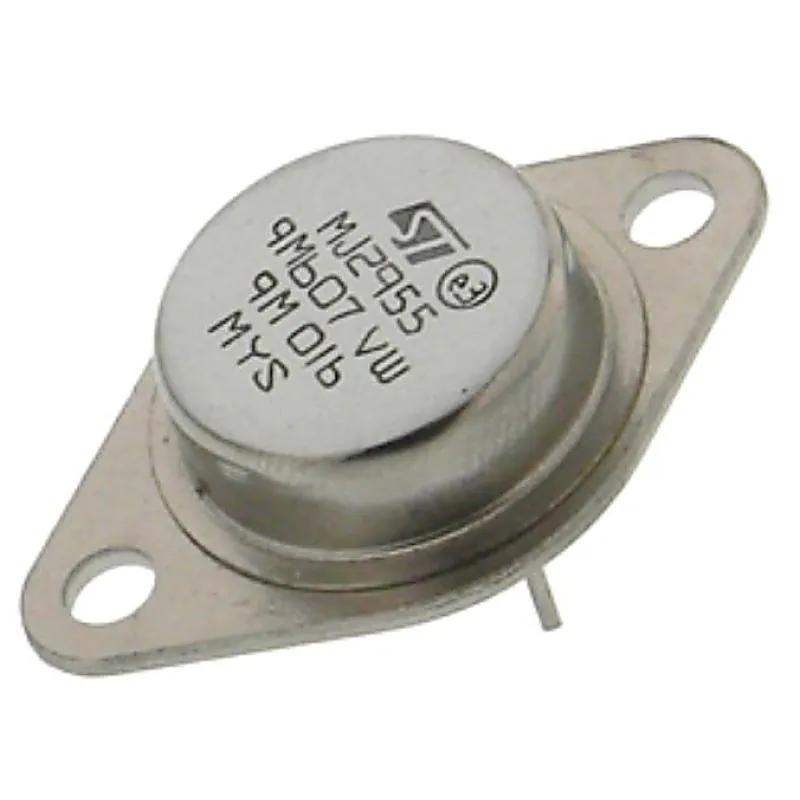

MJ2955 PNP Power Transistor TO-3 Metal Package

MJ2955 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Metal TO-3 case • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity PNP Collector-Base Voltage (VCBO) 100V Collector-Emitter Voltage (VCEO) 60V Emitter-Base Voltage (VEBO) 7V Continuous Collector Current (IC) 15A Base Current (IB) 7A Base Peak Current (IBM) 15A DC Current Gain (hFE) 20-70 Operating Temperature Range -65 - 200°C Power Dissipation (PD) 115W Related Documents:- MJ2955 Transistor Metal Datasheet
