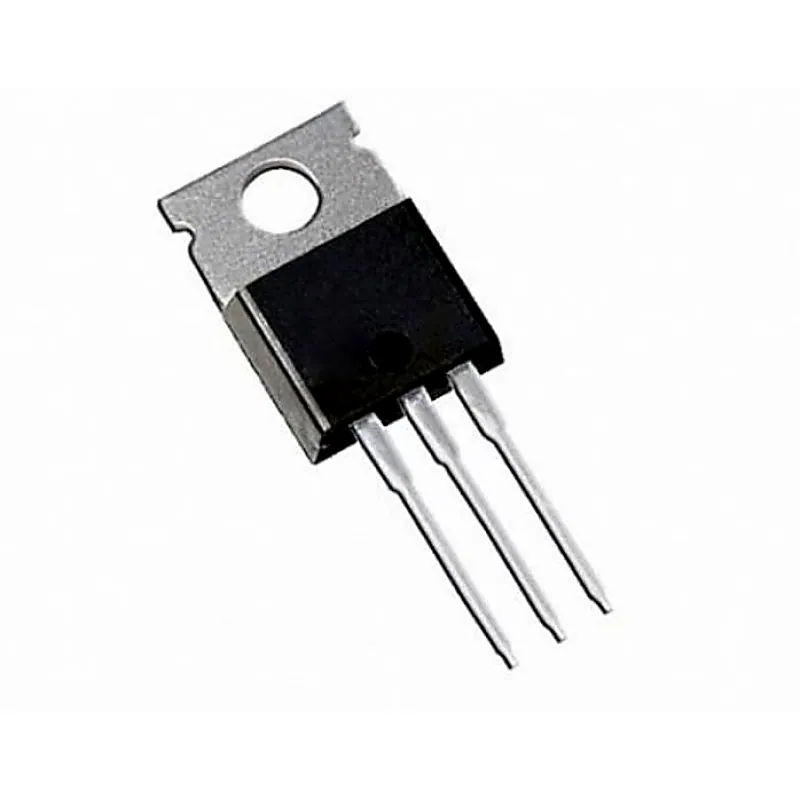

MJE15033 PNP Bipolar Power Transistor 250V 8A TO-220 Package
MJE15033 PNP Bipolar Power Transistor 250V 8A TO-220 Package
MJE15033 is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • High DC current gain • T
+ 18% GST (added at checkout)
In stock — 359 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
MJE15033 is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • High DC current gain • TO−220 compact package • Epoxy meets UL 94 V−0 @ 0.125 in • Simple drive requirements • Easy to carry and handle Detailed Specifications:- Transistor Polarity PNP Collector−Emitter Voltage (VCEO) 250VDC Collector−Base Voltage (VCBO) 250VDC Emitter−Base Voltage (VEBO) 5VDC Continuous Collector Current (Ic) 8ADC Continuous Base Current (Ib) 2ADC Power Dissipation (Pd) 50W Operating Temperature Range -65 - 150°C DC Current Gain (hFE) 70 Related Documents:- MJE15033 Transistor Datasheet
