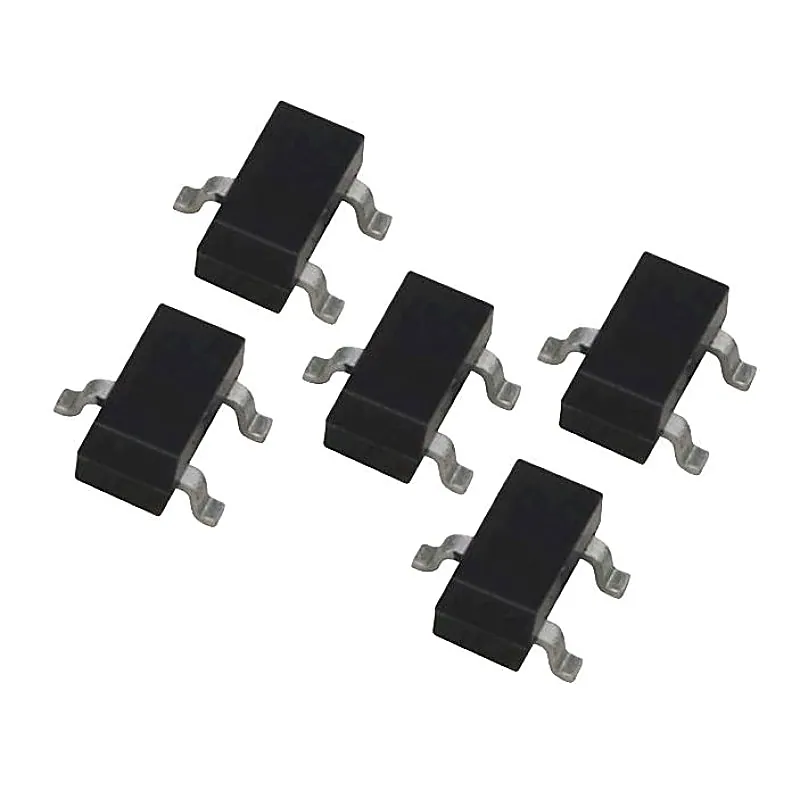

MMBT3904 - (SMD SOT-23 Package) - NPN Switching Transistor - 5 Pieces Pack
MMBT3904 - (SMD SOT-23 Package) - NPN Switching Transistor - 5 Pieces Pack
MMBT3904 NPN Switching transistor comes in Surface-Mounted Device SMD SOT-23 plastic package. This transistor is designed for use with general purpose amplifiers and switches. PNP complement of this transistor is MMBT3906. Specifications:- Mounting Style: SMD/SMT Package/Case: SOT-23-3 Transistor Po
+ 18% GST (added at checkout)
In stock — 871 units ready
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-3
- Transistor Polarity: NPN
- Configuration: Single
- Collector- Emitter Voltage VCEO Max: 40 V
- Collector- Base Voltage VCBO: 60 V
- Emitter- Base Voltage VEBO: 6 V
- Collector-Emitter Saturation Voltage: 0.3 V
- Maximum DC Collector Current: 0.2 A
- Gain Bandwidth Product fT: 300 MHz
- Maximum Operating Temperature: + 150 C
- Series: MMBT3904
- DC Current Gain hFE Max: 300
- Continuous Collector Current: 0.2 A
- Minimum Operating Temperature: - 55 C
- Pd - Power Dissipation: 350 mW
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
MMBT3904 NPN Switching transistor comes in Surface-Mounted Device SMD SOT-23 plastic package. This transistor is designed for use with general purpose amplifiers and switches. PNP complement of this transistor is MMBT3906. Specifications:- Mounting Style: SMD/SMT Package/Case: SOT-23-3 Transistor Polarity: NPN Configuration: Single Collector- Emitter Voltage VCEO Max: 40 V Collector- Base Voltage VCBO: 60 V Emitter- Base Voltage VEBO: 6 V Collector-Emitter Saturation Voltage: 0.3 V Maximum DC Collector Current: 0.2 A Gain Bandwidth Product fT: 300 MHz Maximum Operating Temperature: + 150 C Series: MMBT3904 DC Current Gain hFE Max: 300 Continuous Collector Current: 0.2 A Minimum Operating Temperature: - 55 C Pd - Power Dissipation: 350 mW
