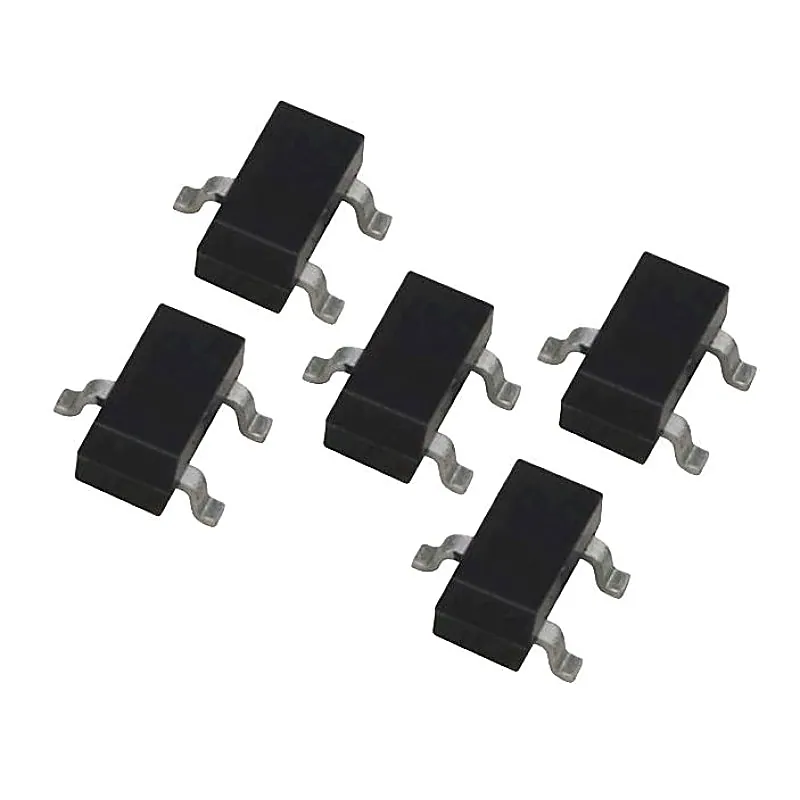

MMBT5401 - (SMD SOT-23 Package) - PNP High Voltage Transistor - 5 Pieces Pack
MMBT5401 - (SMD SOT-23 Package) - PNP High Voltage Transistor - 5 Pieces Pack
MMBT5401 PNP High Voltage transistor comes in Surface-Mounted Device SMD SOT-23 plastic package. Specifications:- Mounting Style: SMD/SMT Package/Case: SOT-23-3 Transistor Polarity: PNP Configuration: Single Collector- Emitter Voltage VCEO Max: 150 V Collector- Base Voltage VCBO: 160 V Emitter- Base
+ 18% GST (added at checkout)
In stock — 755 units ready
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-3
- Transistor Polarity: PNP
- Configuration: Single
- Collector- Emitter Voltage VCEO Max: 150 V
- Collector- Base Voltage VCBO: 160 V
- Emitter- Base Voltage VEBO: 5 V
- Maximum DC Collector Current: 0.6 A
- Gain Bandwidth Product fT: 300 MHz
- Maximum Operating Temperature: + 150 C
- Series: MMBT5401
- Continuous Collector Current: 0.6 A
- DC Collector/Base Gain hFE Min: 50 at 1 mA at 5 V, 60 at 10 mA at 5 V, 50 at 50 mA at 5 V
- Minimum Operating Temperature: - 55 C
- Pd - Power Dissipation: 300 mW
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
MMBT5401 PNP High Voltage transistor comes in Surface-Mounted Device SMD SOT-23 plastic package. Specifications:- Mounting Style: SMD/SMT Package/Case: SOT-23-3 Transistor Polarity: PNP Configuration: Single Collector- Emitter Voltage VCEO Max: 150 V Collector- Base Voltage VCBO: 160 V Emitter- Base Voltage VEBO: 5 V Maximum DC Collector Current: 0.6 A Gain Bandwidth Product fT: 300 MHz Maximum Operating Temperature: + 150 C Series: MMBT5401 Continuous Collector Current: 0.6 A DC Collector/Base Gain hFE Min: 50 at 1 mA at 5 V, 60 at 10 mA at 5 V, 50 at 50 mA at 5 V Minimum Operating Temperature: - 55 C Pd - Power Dissipation: 300 mW
