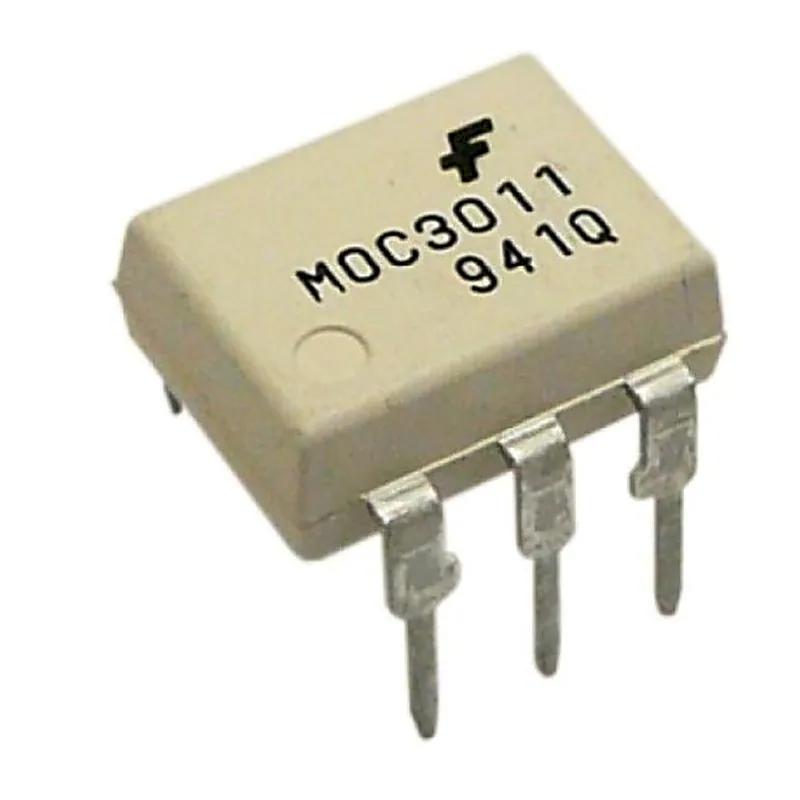

MOC3011 IC - Random Phase OptoIsolator IC

The MOC3011 is optically isolated triac driver devices. These devices contain a GaAs infrared emitting diode and a light activated silicon bilateral switch, which functions like a triac. They are designed for interfacing between electronic controls and power triacs to control resistive and inductive loads for 115 VAC operations. Features:- • Excellent IFT stability—IR emitting diode has low degradation • High isolation voltage—minimum 5300 VAC RMS • Underwriters Laboratory (UL) recognized—File #E90700 • Peak blocking voltage – 250V-MOC301XM – 400V-MOC302XM • VDE recognized (File #94766) – Ordering option V (e.g. MOC3023VM) Applications:- • Industrial controls • Solenoid/valve controls • Traffic lights • Static AC power switch • Vending machines • Incandescent lamp dimmers • Solid state relay • Motor control • Lamp ballasts Specification:- Symbol Parameter Value Unit IF Forward current 60 mA PD Power dissipation 100 mW VR Reverse Voltage 3 V Tstg Storage temperature range -40 to +150 °C TOPR Operating Temperature -40 to +85 °C TSOL Lead Solder Temperature 260 for 10 sec °C ITSM Peak Repetitive Surge Current (PW = 1 ms, 120 pps) 1 A VDRM Off-State Output Terminal Voltage 250 V VISO Isolation Surge Voltage 7500 Vac(pk) Related Document:- MOC3011 IC Data Sheet
