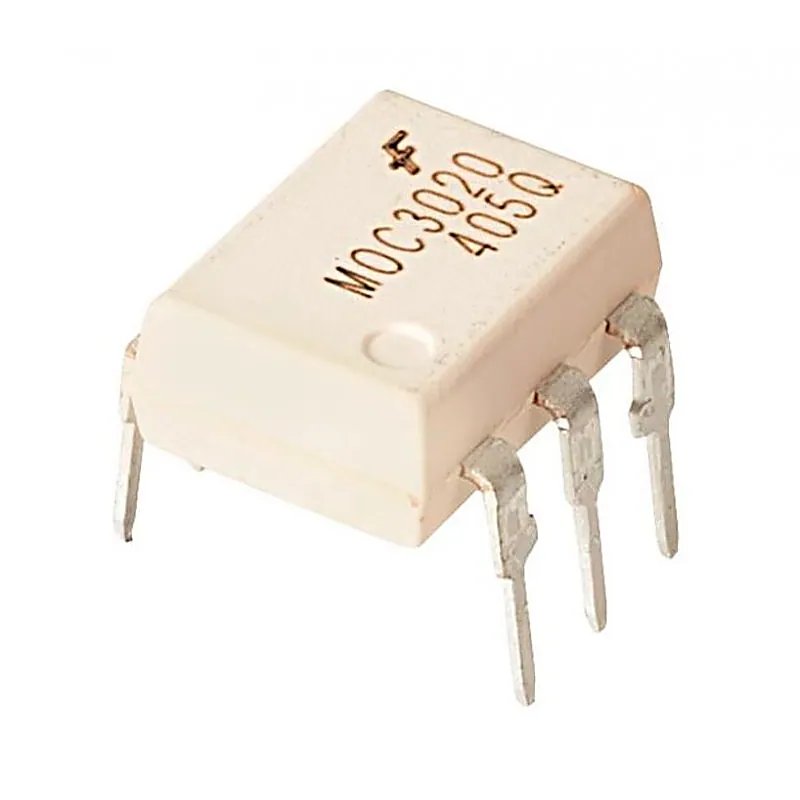

MOC3020 IC - Traic OptoIsolator IC

The MOC3020 is an optically Isolated Triac Driver Device, contains a GaAs infrared emitting diode and a light activated silicon bilateral switch, which functions like a triac. This device is designed for interfacing between electronic controls and power triacs to control resistive and inductive loads for 115VAC operations. Features:- • Excellent IFT stability—IR emitting diode has low degradation • High isolation voltage—minimum 5300 VAC RMS • Underwriters Laboratory (UL) recognized—File #E90700 • Peak blocking voltage: 400V-MOC3020 • VDE recognized (File #94766) Applications:- Industrial, Motor Drive & Control, Consumer Electronics Specification:- Symbol Parameter Value Unit IF Forward current 60 mA PD Power dissipation 100 mW VR Reverse Voltage 3 V Tstg Storage temperature range -40 to +150 °C TOPR Operating Temperature -40 to +85 °C TSOL Lead Solder Temperature 260 for 10 sec °C ITSM Peak Repetitive Surge Current (PW = 1 ms, 120 pps) 1 A VDRM Off-State Output Terminal Voltage 250 V VISO Isolation Surge Voltage 7500 Vac(pk) Related Document:- MOC3020 IC Data Sheet
