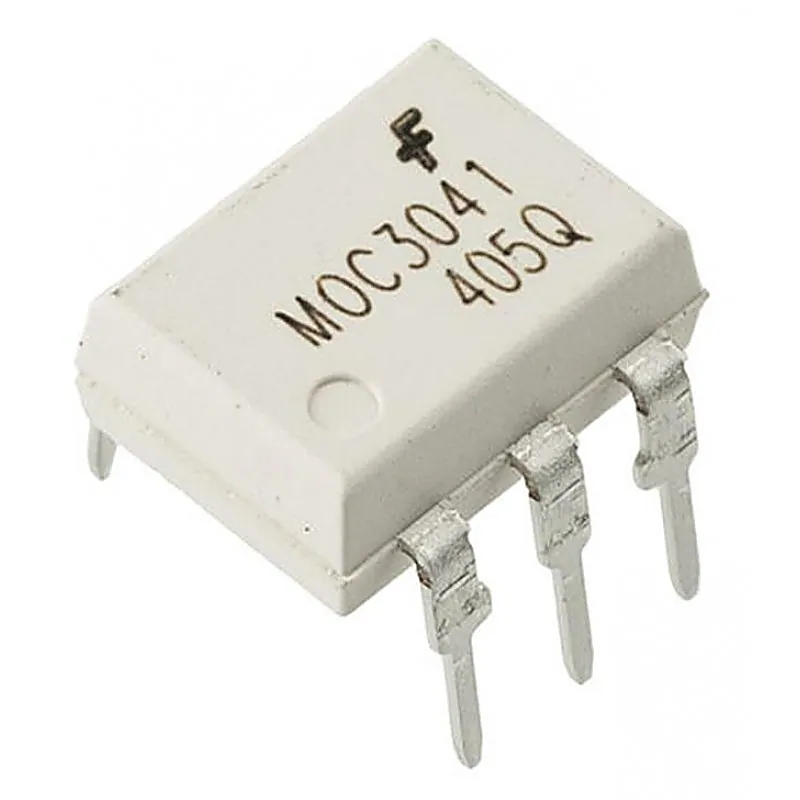

MOC3041 IC - Zero-Cross Optoisolator Triac Driver IC

The MOC3041 devices consist of gallium arsenide infrared emitting diodes optically coupled to a monolithic silicon detector performing the function of a Zero Voltage Crossing bilateral triac driver. They are designed for use with a triac in the interface of logic systems to equipment powered from 115 Vac lines, such as solid–state relays, industrial controls, motors, solenoids and consumer appliances, etc. Features:- • Simplifies Logic Control of 115 Vac Power • Zero Voltage Crossing • dv/dt of 2000 V/µs Typical, 1000 V/µs Guara Applications:- • Solenoid/Valve Controls • Temperature Controls • Lighting Controls • E.M. Contactors • Static Power Switches • AC Motor Starters • AC Motor Drives • Solid State R Specification:- Symbol Parameter Value Unit IF Forward current 60 mA PD Power dissipation 120 mW VR Reverse Voltage 6 V Tstg Storage temperature range -40 to +150 °C TOPR Operating Temperature -40 to +85 °C TSOL Lead Solder Temperature 260 for 10 sec °C ITSM Peak Repetitive Surge Current (PW = 1 ms, 120 pps) 1 A VDRM Off-State Output Terminal Voltage 400 V VISO Isolation Surge Voltage 7500 Vac(pk) Related Document:- MOC3041 IC Data Sheet
