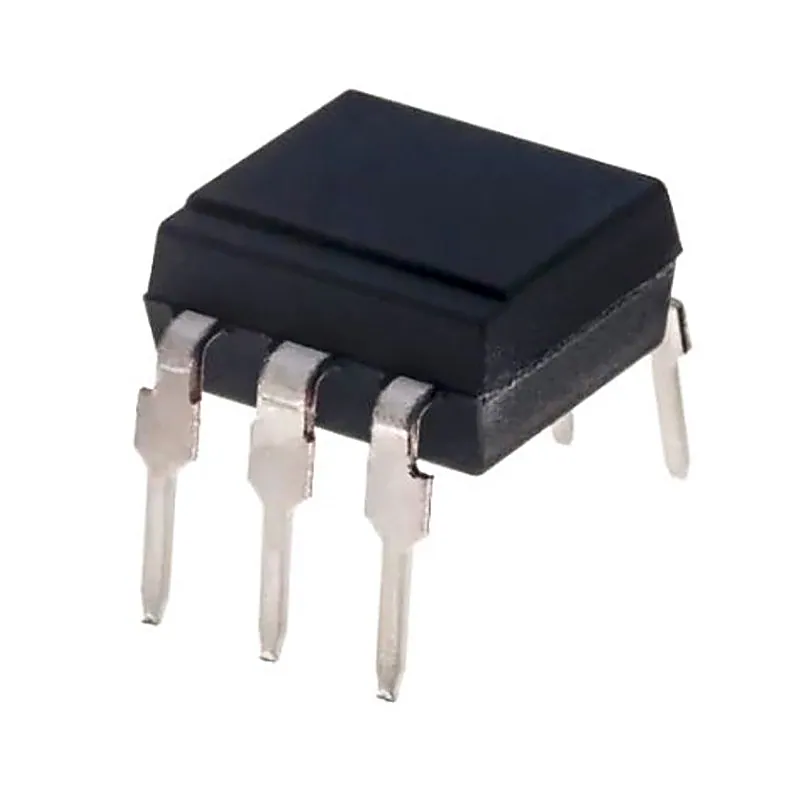

MOC8101 IC - Transistor Output Optocoupler IC

The MOC8101 optocoupler consisting of a gallium arsenide infrared emitting diode optically coupled to a silicon planar photo transistor detector in a plastic plug-in DIP-6 package. The coupling device is suitable for signal transmission between two electrically separated circuits. The potential difference between the circuits to be coupled should not exceed the maximum permissible reference voltages. The base terminal of the MOC8101 is not connected, resulting in a substantially improved common mode interference immunity. Features:- • Isolation test voltage, 5300 VRMS • No base terminal connection for improved common mode interface immunity • Long term stability • Industry standard dual in line package • Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC Specification:- Symbol Parameter Value Unit IF Forward current 60 mA PD Power dissipation 100 mW VR Reverse Voltage 6 V Tstg Storage temperature range - 55 to + 150 °C TOPR Operating Temperature - 55 to + 100 °C TSOL Lead Solder Temperature 260 for 10 sec °C IFSM Surge forward current 2.5 A BVCEO Collector emitter breakdown voltage 30 V Related Document:- MOC8101 IC Data Sheet
