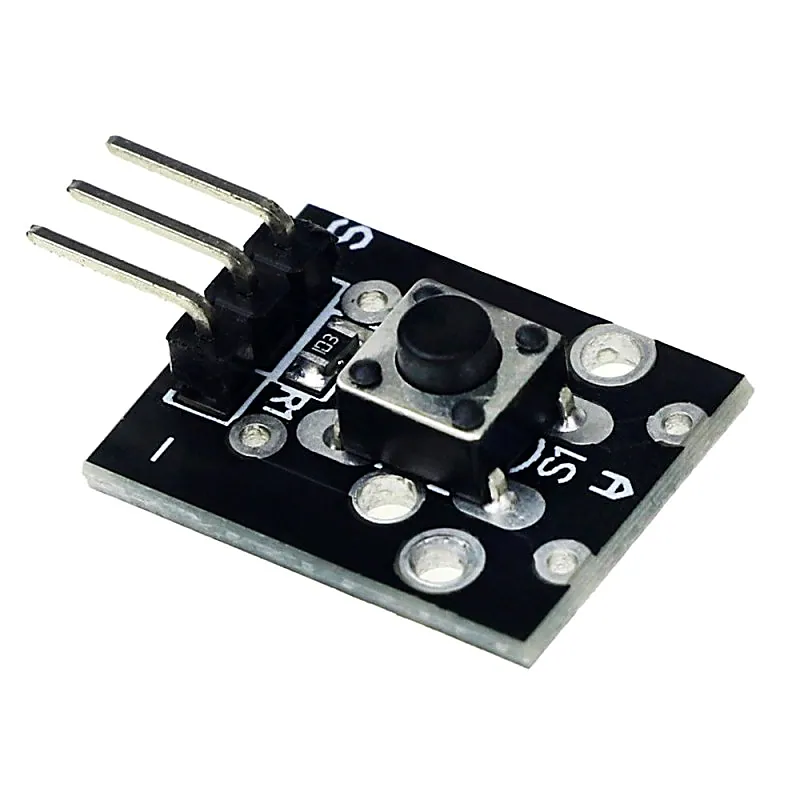

Momentary Tactile Push Button Module DC 5V Switch

This Momentary Tactile Push Button Module DC 5V 12V Switch is ideally suited to add a button to your projects and gives a high signal when it is pressed. The module of the push button is a fully-fledged device with which you can install it immediately in the project, without using a pull-up or tightening resistances, because this is already in the circuit. The button together with the resistor is located on the board, where there are holes for installation. The built-in resistor has a rating of 10 k. The module is designed for two contacts: when pressed, they are closed and open when released. There are 3 outputs on the board: I, S, + 5V. Contact I is connected to the common wire of the circuit, S is the output of the module and + 5V is connected to the power supply. Package Includes: 1 x Momentary Tactile Push Button Module DC 5V 12V Switch Specifications: Operating Voltage (VDC) 5 Contact Resistance 50 MΩ Operating Temperature Range(°C) -25 to 105 Mech. & Electrical Lifecycle 100,000 PCB thickness 1.5 mm Length (mm) 20 Width (mm) 16 Height (mm) 7 Weight (gm) 1 (approx)
