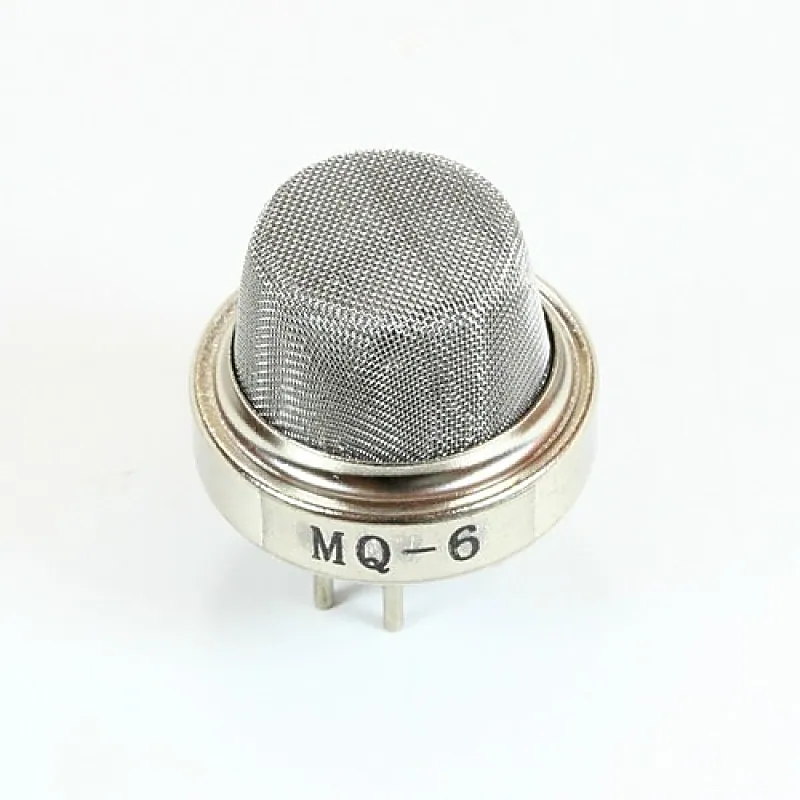

MQ6 - LPG Propane Gas Sensor

The MQ-6 LPG - Isobutane - Propane Gas Sensor is a semiconductor gas sensor that detects the presence of LPG, Isobutane, and Propane gas at concentrations from 100 ppm to 10,000 ppm, a range suitable for detecting gas leaks. The sensor’s simple analog voltage interface requires only one analog input pin from your microcontroller.The MQ-6 LPG - Isobutane - Propane Gas Sensor detects the concentration of gas in the air and outputs its reading as an analog voltage. The sensor can operate at temperatures from -10 to 50°C and consumes less than 150 mA at 5 V. Features of MQ6 LPG GAS SENSOR:- High Sensitivity to LPG, iso-butane, propane Small sensitivity to alcohol, smoke Good sensitivity to Combustible gas in wide range High sensitivity to Propane, Butane, LPG and also response to Natural gas Long life and low cost Simple drive circuit Specification of MQ6 LPG GAS Sensor:- Detection Range: 100 - 10,000 ppm iso-butane propane Fast Response Time: <10s Simple drive circuit Heater Voltage: 5.0V Dimensions: 18mm Diameter, 17mm High excluding pins, Pins - 6mm High Applications of MQ6 LPG Gas Sensor:- Gas leak detection system Fire/Safety detection system Domestic gas leakage detector Industrial Combustible gas detector Portable gas detector Gas leak alarm Gas detector
