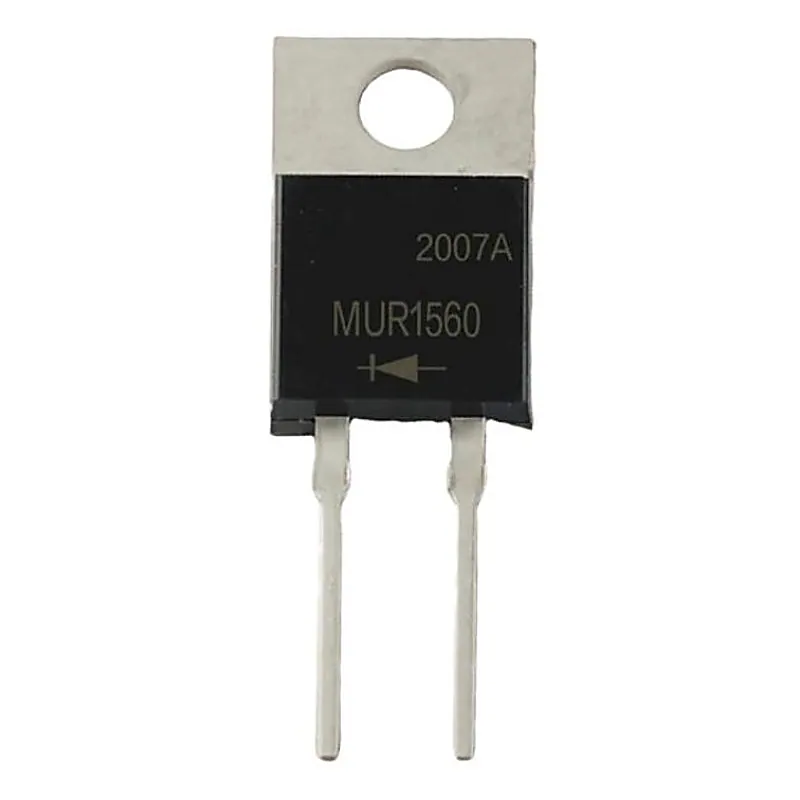

MUR1560 400V-600V 15A Ultrafast Power Diode

The MURP1560 is ultrafast diodes (trr < 55ns) with soft recovery characteristics. They have a low forward voltage drop and are of planar, silicon nitride passivated, ion-implanted, epitaxial construction. These devices are intended for use as energy steering/clamping diodes and rectifiers in a variety of switching power supplies and other power switching applications. Their low stored charge and ultra fast recovery with soft recovery characteristics minimizes ringing and electrical noise in many power switching circuits, thus reducing power loss in the switching transistor. Formerly developmental type TA09905. Features:- • Ultra fast with Soft Recovery<55ns • Operating Temperature 175 °C • Reverse Voltage Up to 600V • Avalanche Energy Rated • Planar Construction Applications:- • Switching Power Supply • Power Switching Circuits • General Purpose Specification:- Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage 600 V VRWM Working Peak Reverse Voltage 600 V VR DC Blocking Voltage 600 V IFSM Non-Repetitive Peak Forward Surge Current 200 A TJ Operating Junction Temperature Range − 55 to +175 °C Tstg Storage Temperature Range − 55 to +175 °C IF(AV) Maximum Average Forward Rectified Current 15 A IFRM Repetitive Peak Surge Current 30 A Related Document:- MUR1560 Diode Data Sheet
