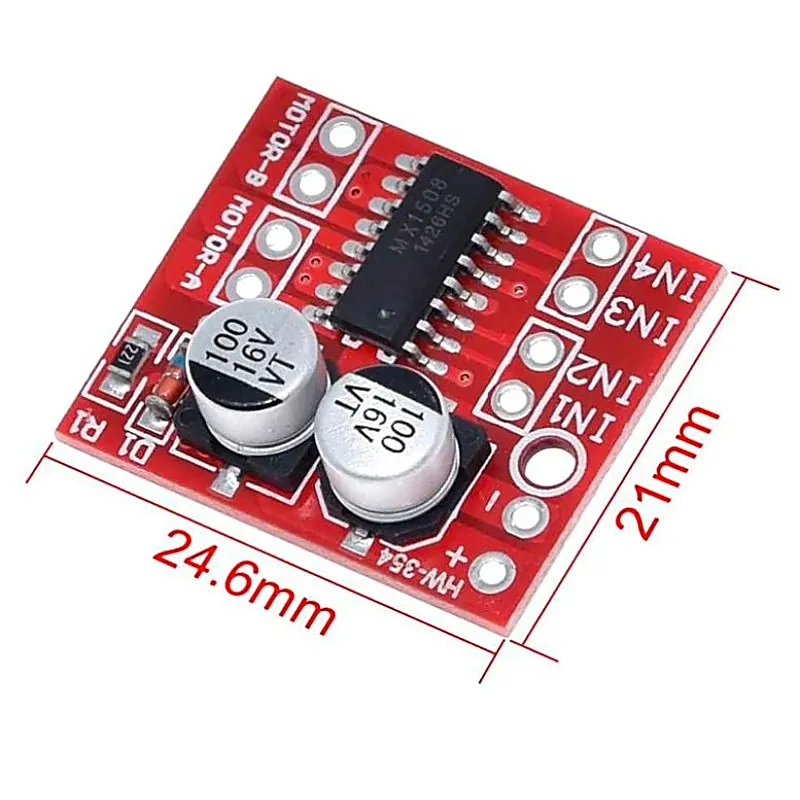

MX1508 Dual H Bridge DC PWM Stepper Motor Driver

MX1508 Dual H Bridge DC PWM Stepper Motor Driver module is ideal for use in battery-powered smart cars, toy cars, robots. Supply voltage 2V ~ 10V can drive two DC motors or 4-wire 2-phase stepper motors, can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed. Each can provide a continuous current of 1.5A, peak current up to 2.5A, thermal protection and can be automatically restored. Note: This Product is available in two different variants of IC (MX1508 , MX1616H and JL AS208PO1429-25C4) with the same working we will ship it randomly. Features:- Dual H-bridge motor driver can drive two DC motors or a 4-wire two-phase stepper motor. Single Operating current 1.5A peak current up to 2.5A, low standby current (less than 0.1uA). Built-in common conduction circuit, when the input pin is left floating, the motor does not malfunction. Built-in thermal protection circuit with hysteresis effects (TSD), without worrying about the motor stall. Ultra-small size. The mounting hole diameter: 2 mm Specifications:- The module supply voltage: 2V-10V Signal input voltage: 1.8-7V Single Operating current: 1.5A Peak current : up to 2.5A Low standby current : less than 0.1uA The mounting hole diameter: 2 mm Length(mm): 24.7 Breadth(mm): 21 Height(mm): 5 Weight(g): 2 Package Includes:- 1 x MX1508 Dual H Bridge DC PWM Stepper Motor Driver
