MY1016Z2 24V 250W Motor with E-Bike Combo Kit

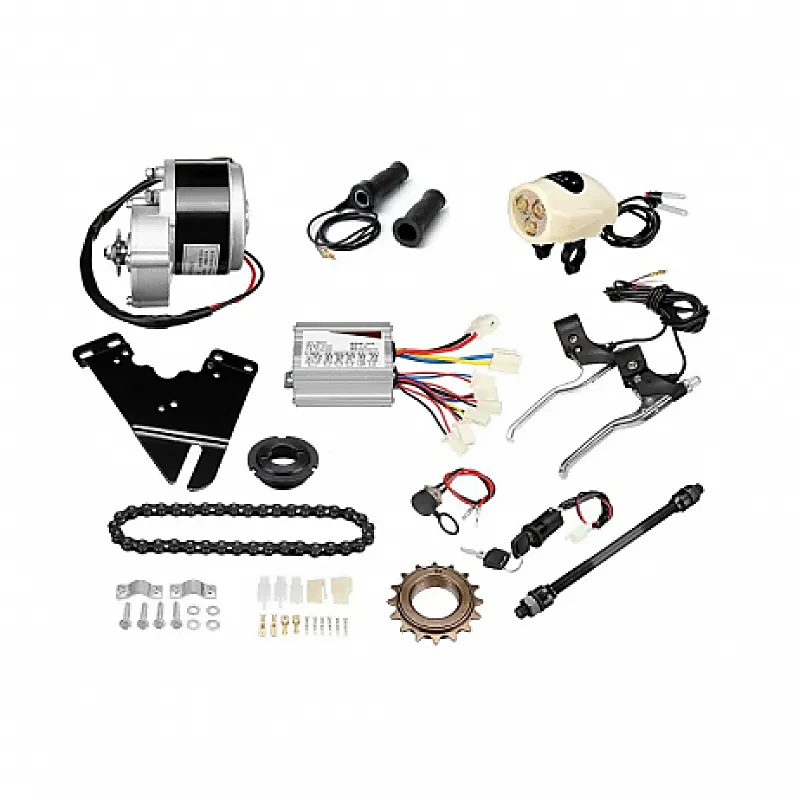

The MY1016Z2 24V 250W Motor with E-Bike Combo Kit is the complete set of e-BikeMotor, Motor controller, Twist throttle gear and Brake Lever. This combo made with compatibility with each other so you do not need to put efforts to choose them individually for your project. This popular reduction motor is simply the most commonly used motor for Scooters, Bikes and quads available in the market! It is normally found in the better quality quads and scooters on the market and is classed as a mid-range combination. They are quite powerful for their small size and extremely reliable. We've sold these for so many different applications that they were never designed for, but the robustness of the build makes them just go and go and go etc! Features : 24 Volt DC Operation Permanent Magnet DC Motor Direct Drive (No Free Spooling) Suitable for forwarding and Reverse Operations Base Mount Model 9 Tooth Sprocket for 1/2 x 1/8 Pitch Chain This motor is capable of rotation in either clockwise or counterclockwise by reversing the motors power wires. Specifications: MY1016Z2 No Load RPM: 3300 No Load Current: <2.2 Amps Rated Wattage: 250W (0.33 Horsepower) Rated Load RPM: 400 Torque (NM): 22 Rated Current: 13.4 Amps Efficiency: 78% Reduction Ratio: 9.78:1 Chain Size: Pitch 0.5in; Roller Diameter 0.3in; Roller Width 0.16in; Package Includes : 1 x MY1016Z2 DC 24V 250W motor 1 x Motor controller 1 x Chain 1 x Freewheel 1 x Freewheel adapter 1 x Mounting plate with bolts 1 x Throttle handle & Brake lever 1 x Headlight 1 x Switch & key 1 x 18cm axis 1 x Power Charger(IN: AC90~240V, OUT: 24VDC/2A) Specifications :- Model MY1016Z2 Rated Speed (RPM) 3300 Shipment Weight 4.25 kg Shipment Dimensions 26x17x19 cm
