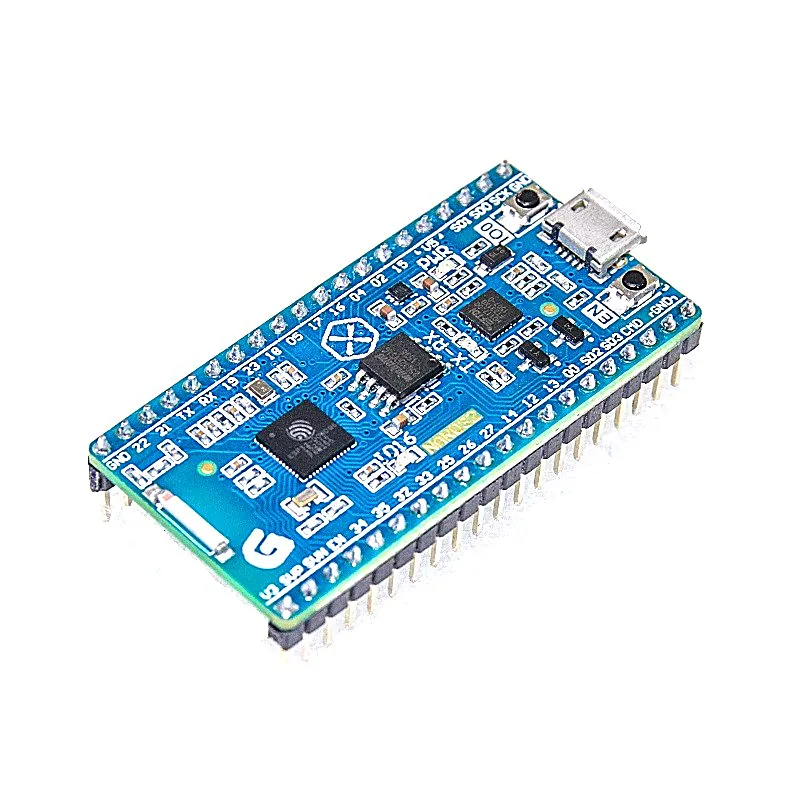

NANO32 ESP32 IoT Development Board

The NANO32 ESP32 IoT Development Board is the product by the designers of Arduino Nano and Espresso Lite (Thailand-based Gravitech and MakerAsia respectively) is the first third-party development board that provides another alternative to the eager-beavers community of geeks, makers, hackers and developers interested in the latest Wi-Fi/BT combo wonder chip. This NANO32 ESP32 IoT Development Board is the big brother of the ESP8266 development board. Nano32 is collaboration work by Makerasia and Gravitech from Thailand. It is base on ESP32 SoC. ESP32 the flagship product from Espressif (the company that design and produce ESP8266), but now with Xsensa Dual-Core 32-bit processors that case provides 600DMPIS. Lets look at the features and Specification of this board. The ESP32 is the latest chipset to be released by Shanghai-based, Espressif Systems that combines both Wi-Fi and Bluetooth (BT) capabilities within its dual CPU core and a rich accompaniment of hardware peripherals. Designed as an ultra-low power chip using TSMC 40nm technology, it employs a customized CPU design based on the Cadence Tensilica Xtensa Dual-Core 32-bit LX6 600 DMIPS. Specifications and Features: ESP32 SoC (System on Chip) with WiFi and Bluetooth BLE 40MHz Crystal for CPU, 32.768KHz for RTC and low power operation 4MB Flash (32MBit) FTDI231 for the USB to Serial communication Auto-reset for an automatic flash of the new program Onboard 3.3V, 0.5A LDO tested to work up to 1A 2.5dBi Peak Gain, 0.5dBi average gain antenna Key Features of ESP32 SoC: Xtensa Dual-Core 32-bit LX6 microprocessors, up to 600 DMIPS Integrated 520 KB SRAM Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP Integrated dual mode Bluetooth (classic and BLE) 4 MByte flash (32Mbit) 2.2V to 3.6V operating voltage -40C to +125C operating temperature 32 GPIO ESP32 Wi-Fi : 802.11 b/g/n/e/i 802.11 n (2.4 GHz), up to 150 Mbps 802.11 e: QoS for wireless multimedia technology WMM-PS, UAPSD A-MPDU and A-MSDU aggregation Block ACK Fragmentation and defragmentation Automatic Beacon monitoring/scanning 802.11 i security features: pre-authentication and TSN Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS) Infrastructure BSS Station mode/SoftAP mode Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management UMA compliant and certified Antenna diversity and selection ESP32 Bluetooth : Compliant with Bluetooth v4.2 BR/EDR and BLE specification Class-1, class-2 and class-3 transmitter r without external power amplifier Enhanced power control +10 dBm transmitting power NZIF receiver with -98 dBm sensitivity Adaptive Frequency Hopping (AFH) Standard HCI based on SDIO/SPI/UART High speed UART HCI, up to 4 Mbps BT 4.2 controller and host stack Service Discover Protocol (SDP) General Access Profile (GAP) Security Manage Protocol (SMP) Bluetooth Low Energy (BLE) ATT/GATT HID All GATT-based profile supported SPP-Like GATT-based profile BLE Beacon A2DP/AVRCP/SPP, HSP/HFP, RFCOMM CVSD and SBC for audio codec Bluetooth Piconet and Scatternet GPIO Peripherals : 3 x UARTs, including hardware flow control 3 x SPI 2 x I2S 12 x ADC input channels 2 x DAC 2 x I2C PWM/timer input/output availabe on every GPIO pin OpenOCD debug interface with 32 kB TRAX buffer SDIO master/slave 50 MHz Supports external SPI flash up to 16 MB SD-card interface support Security Related : IEEE 802.11 standard security features all supported, including WFA, WPA/WPA2 and WAPI Secure boot Flash encryption 1024-bit OTP, up to 768-bit for customers Cryptographic hardware acceleration: AES HASH (SHA-2) library RSA ECC Random Number Generator (RNG) Package Includes : 1 xNANO32 ESP32 IoT Development Board Attachments : Download
