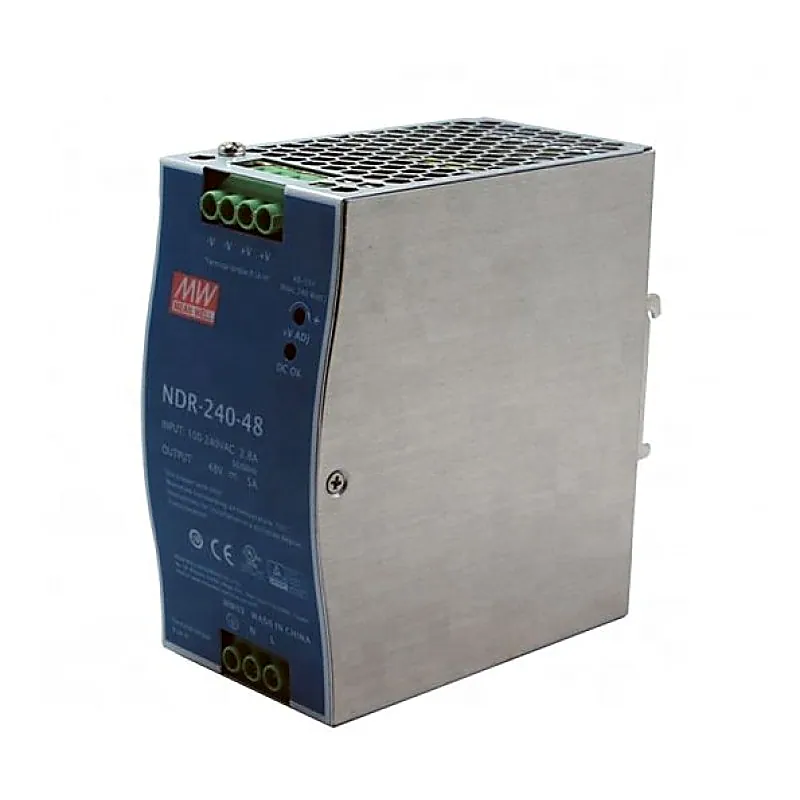

NDR-240-48 Mean well SMPS - 48V 5A-240W Din Rail Metal Power Supply

Key Specifications:- Output Voltage 48V Type DIN Rail Type Approx. Wattage 240W Features Standard Series NDR (Standard) Mechanical Form DIN Rail Warranty 3 Years Warranty IP Level Non-Waterproof Input Voltage 100-240V auto-select Features:- Universal AC input / Full range Protections: Short circuit / Overload / Over voltage / Over temperature Cooling by free air convection Can be installed on DIN rail TS-35 / 7.5 or 15 UL508 (industrial control equipment) approved EN61000-6-2 (EN50082-2) industrial immunity level 100% full load burn-in test Low cost 3 years warranty Specifications:- AC input voltage range 90~264VAC; 127~370VDC AC inrush current (max.) Cold start, 35A at 230VAC DC adjustment range 12V: 12~14V, 24V: 24~28V, 48V: 48~55V Overload protection 105%~130% Constant current limiting, auto-recovery Over voltage protection 14V: 14~17V, 24V: 29~33V, 48V: 56~65V Over temperature protection Shut down o/p voltage, re-power on to recover Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC Working temperature -20~+70°C(refer to output derating curve) Safety standards UL508, TUV EN60950-1 approved EMC standards EN55022(CISPR22), EN61204-3 Class B,EN61000-3-2,-3 , EN61000-4-2,3,4,5,6,8,11,EN55024, EN61000-6-2(EN50082-2), EN61204-3 Connection (screw DIN terminal) I/P: 3 poles, O/P: 4 poles Dimension (LxWxH) (mm) 63x 125.2x 113.5mm Packing 12pcs / 13kg Related Documents:- NDR-240 Datasheet NDR-240-48 Test Report CE Certificate (NDR-240) UL Certificate (NDR-240) TUV Certificate (NDR-240) EMC Certificate(NDR-240)
