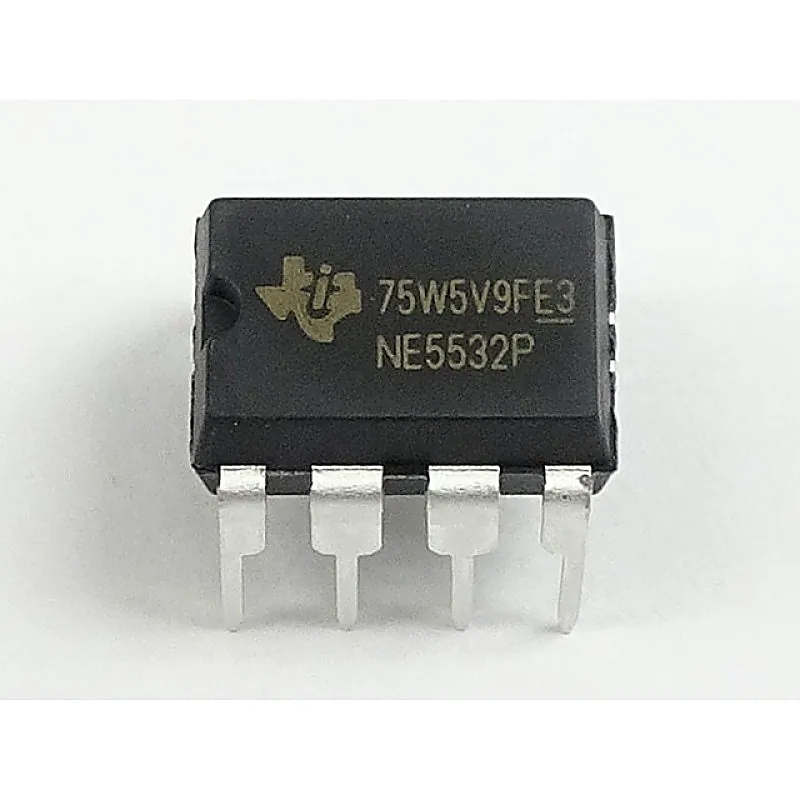

NE5532 Dual Noise High-Speed Audio Operational Amplifier (Op-Aamp) IC DIP-8 Package

The NE5532 devices are high-performance operational amplifiers combining excellent DC and AC characteristics. They feature very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection. These operational amplifiers are compensated internally for unity-gain operation. These devices have specified maximum limits for equivalent input noise voltage. Features:- • Equivalent Input Noise Voltage: • 5 nV/√Hz Typ at 1 kHz • Unity-Gain Bandwidth: 10 MHz Typ • Common-Mode Rejection Ratio: 100 dB Typ • High DC Voltage Gain: 100 V/mV Typ • Peak-to-Peak Output Voltage Swing 26 V Typ With VCC± = ±15 V and RL = 600 Ω • High Slew Rate: 9 V/μs Typ Specification:- Parameter Specification Number of channels (#) 2 Total supply voltage (Max) (+5V=5, +/-5V=10) 10 Total supply voltage (Min) (+5V=5, +/-5V=10) 30 Rail-to-rail No GBW (Typ) (MHz) 10 Slew rate (Typ) (V/us) 9 Vos (offset voltage @ 25 C) (Max) (mV) 4 Iq per channel (Typ) (mA) 4 Vn at 1 kHz (Typ) (nV/rtHz) 5 Rating See Data Sheet Operating temperature range © 0 to 70 Input bias current (Max) (pA) 200 CMRR (Typ) (dB) 100 Output current (Typ) (mA) 38 Related Document:- NE5532 IC Datasheet
