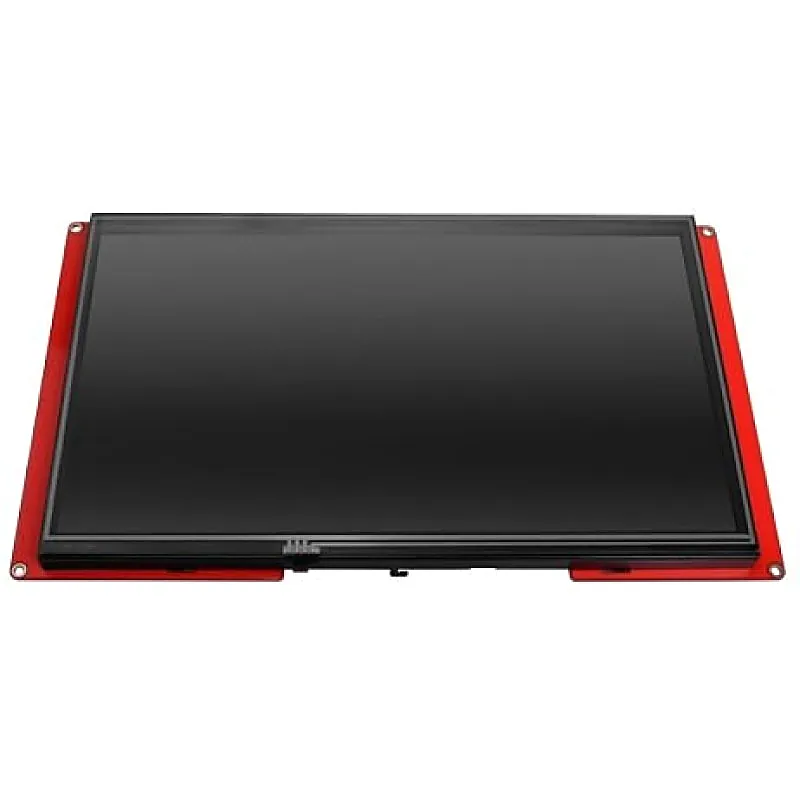

Nextion 10.1 inch Intelligent NX1060P101-011C-I HMI Capacitive Touch Display

Nextion is a Human Machine Interface(HMI) solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider, etc.) and ASCII text-based instructions for coding how components interact at the display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text-based instructions. The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage, and SRAM compared with Basic Series and Enhanced Series. Whats more and new? The audio, video, and animation play functions enrich users project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move, and Drag .etc. You can develop the HMI GUI project via the free latest Nextion Editor software ver 0.58 or above, the easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads. Features: Model: NX1060P101-011C-I(HMI Capacitive Touch Display) NX1060P101-011C-I(10.1 IPS RGB 65K capacitive touchscreen) Onboard MCU 200MHz and up to 128MB for HMI project Built-in RTCEEPROM, 8 digital GPIOs (2 PWM capable) 4 pins (+5V, TX, RX, GND) TTL serial interface 300 nit Brightness with 1% interval adjustment Audio interface CE and RoHS Compliant Package Includes: 1 x NX1060P101-011C-I HMI Display 1 x XH2.54 4P Wire 1 x Power Supply Test Board Specifications :- Model Name NX1060P101-011C-I Size(inch) 10.1 Pixels 1024*600 Touch Panel Capacitive(CTP) Flash(MB) 128 RAM(KB) 512 MCU(MHz) 200 GPIOs 8 Color 65536 EEPROM (Byte) 1024 Enclosure No RTC Yes Length(mm) 258 Width(mm) 152 Height(mm) 11.5 Weight (g) 720
