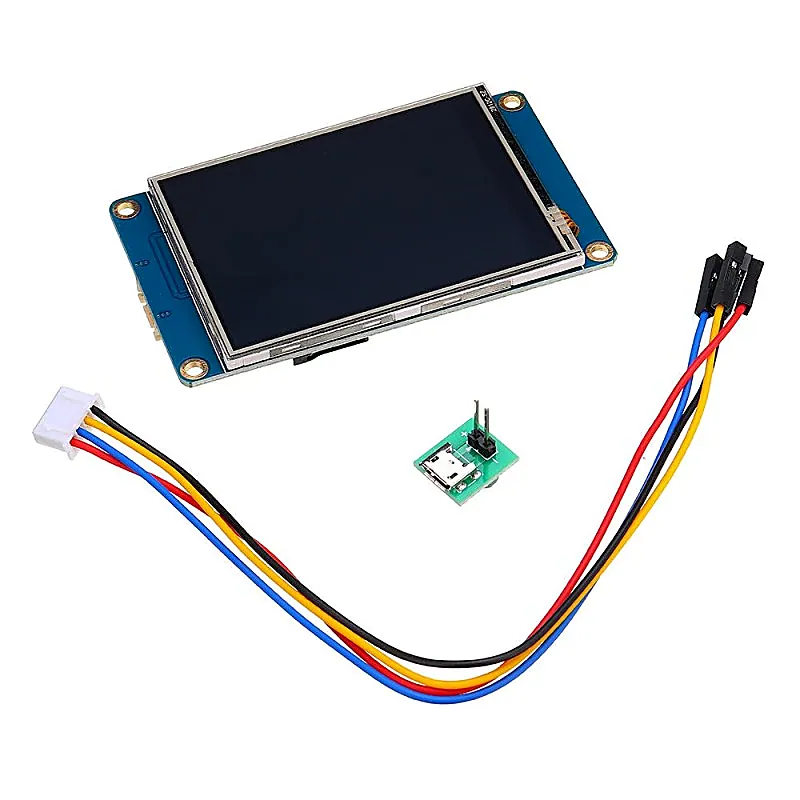

Nextion 2.8 inch BASIC NX3224T028 HMI LCD Touch Display

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. Nextion NX3224T028 Generic 2.8HMI LCD Touch Display includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time on application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. Its easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART. NX3224T028 is a powerful 2.8 HMI, which is member of Nextion family. Features include: a 2.8 TFT 320240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors Features: 320 x 240 Resolution RGB 65K true to life colours TFT screen with integrated resistive touch panel 4 pin TTL serial interface 4M Flash memory for User Application Code and Data Onboard micro-SD card slot for firmware up gradation Visual Area: 57.6mm(L)43.2mm(W) Adjustable Brightness: 0~180 nit, the interval of adjustment is 1% 5V65mA power consumption Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino. Certificates: CE/EMC, RoHS (certificates) Package Includes: 1 x Nextion NX3224T028 Generic 2.8HMI LCD Touch Display 1 x power supply test board 1 x 4-pin grove cable Specifications :- Model No. NX3224T028 Display Type NX3224T024_011R (R: Resistive touchscreen) Operating Voltage (VDC) 4.75 ~ 7 Max. Operating Current (mA) 90 Display Layout Size (L x W x H) mm 74.4 42.9 5.8 Net weight (gm) 25 Touch Type Resistive Colors 65K (65536) Recommended Power Supply 5V, 500mA, DC Working Temperature Range (C) -20 to 70 Working Humidity Range 10% to 90% RH USB Interface No Micro-SD Card Slot Yes (FAT32 format), support maximum 32G Micro SD Card Flash Memory 4 MB RAM 3584 BYTE
