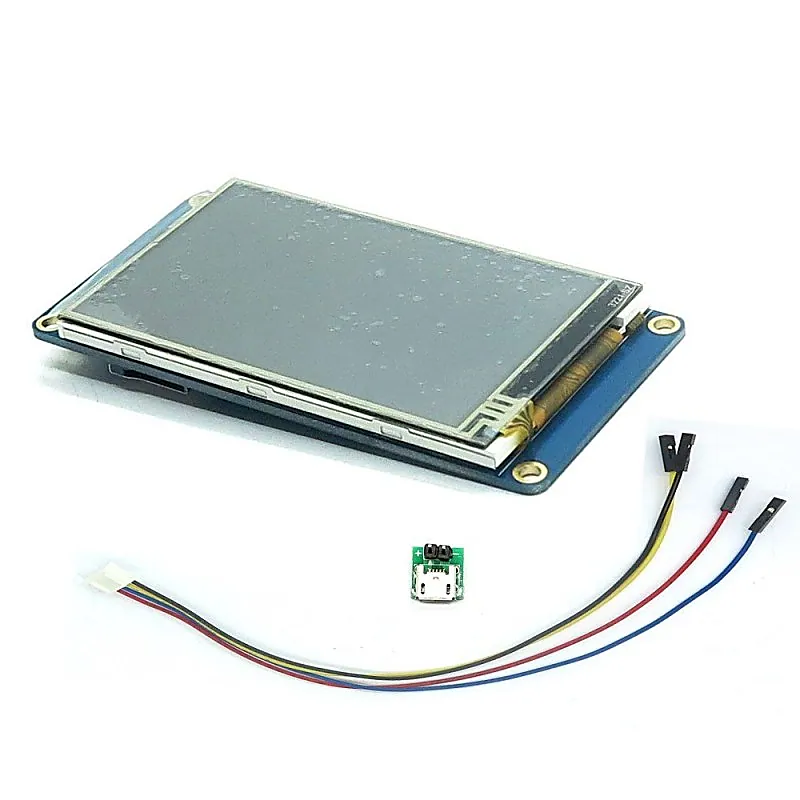

Nextion 3.2 inch BASIC NX4024T032 HMI TFT LCD Touch Display Module

Nextion NX4024T032 Generic 3.2 HMI TFT Intelligent LCD Touch Display Module is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. Its easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART. Features: 400 x 240 Resolution RGB 65K true to life colors TFT Screen with integrated 4-wire Resistive Touch Panel Easy 4 pin interface to any TTL Serial Host 4M Flash memory for User Application Code and Data Onboard micro-SD card for firmware upgrade Visual Area:69.60mm(L)41.76mm(W) Adjustable Brightness:0~230 nit, the interval of adjustment is 1% 5V85mA power consumption CE/EMC, RoHS certified (certificates) Technical support: For technical support, please open a ticket onItead Support System. Package Includes: 1 x Nextion NX4024T032 Generic 3.2 HMI TFT Intelligent LCD Touch Display Module 1 x Connecting Wires 1 x Power Supply Test Board Specifications :- Model No. NX4024T032 Display Type 011R(R:Resitive Touchscreen) NX4024T032 Operating Voltage (VDC) 4.75 ~ 7 Max. Operating Current (mA) 85 Display Layout Size (L x W x H) mm 95 47.6 5.8 Net weight (gm) 43 Touch Type Resistive Colors 65K (65536) Recommended Power Supply 5V, 500mA, DC Working Temperature Range (C) -20 to 70 Working Humidity Range 10% to 90% RH USB Interface No Micro-SD Card Slot Yes (FAT32 format), support maximum 32G Micro SD Card Memory Features Flash Memory 4 MB RAM 3584 BYTE
