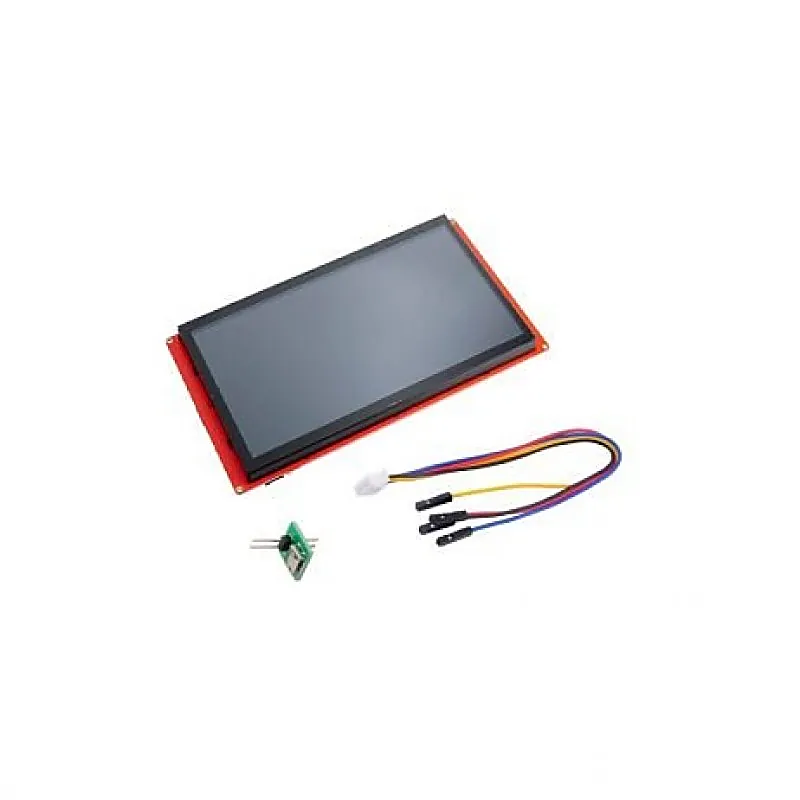

Nextion 4.3 inch Intelligent NX4827P043-011C HMI Capacitive Touch Display

Nextion Intelligent NX4827P043-011C 4.3 HMI Capacitive Touch Display having a capacitive touch screen with enclosure. Nextion displays have a built-in microcontroller that controls the display, it takes care of which button has been clicked, creating text, storing images, or change the background. The Nextion Intelligent NX4827P043-011C-Y 4.3 Capacitive Touchscreen Display with Enclosure is so simple to the interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and you wont believe it will work even with basic 8051 microcontrollers basically it will work with any board or Microcontroller that has UART port. Note: The small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. Features: 128 MB of Flash memory 1024 Byte EEPROM XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface 1.25T-2-2A Audio port for external speaker connection 8 Digital extended GPIO (IO0-IO7 support input, output, and component binding event, IO6-IO7 support PWM) Built-in RTC support Package Includes: 1 x Nextion Intelligent NX4827P043_011C 4.3 HMI Capacitive Touch Display Specifications :- Model NX4827P043-011C Operating Voltage 5 V Operating Current 220 mA FLASH Memory 120 MB RAM Memory 512 KB Serial Port Mode 3.3V/5.0V TTL Touch type Capacitive Touches > 1 million Brightness 300nit Resolution 480272 pixel Color 65K 65536 Operating Temperature Range (C). -20 to 70 Length (mm) 120 Width (mm) 75 Height (mm) 13 Weight (gm) 110
