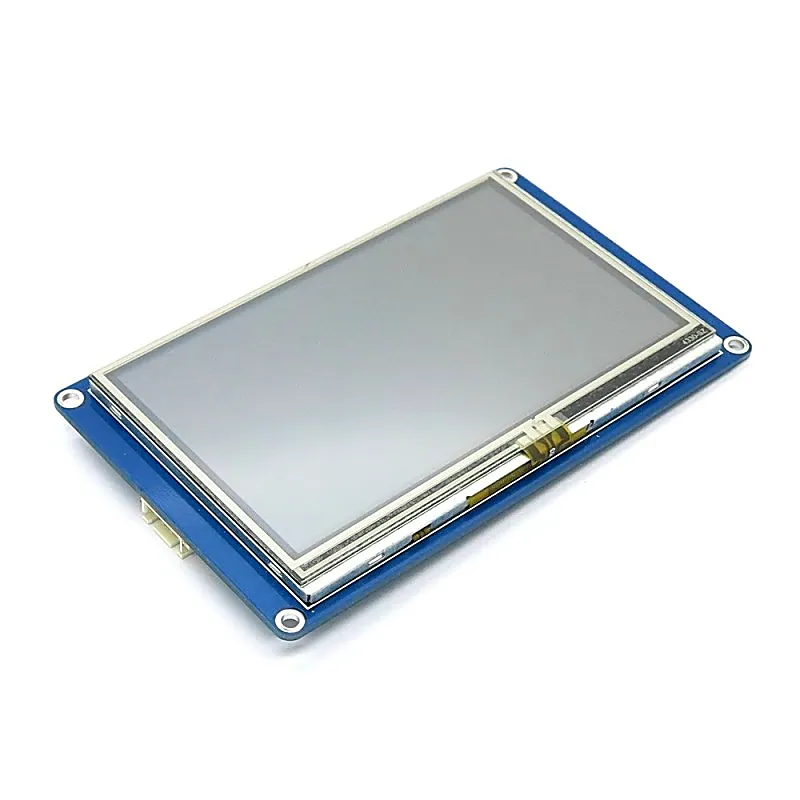

Nextion 7 inch BASIC NX8048T070 HMI TFT LCD Touch Display

Nextion NX8048T070-Generic 18.1 cm (7 inch) HMI TFT LCD Touch Display is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. Nextion includes a hardware part (a series of TFT boards) and a software part (theNextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time on application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. Its easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART. Nextion 18.1 cm (7 inch) HMI TFT Screen Intelligent Display Module with integrated 4-wire Resistive Touch Panel For Arduino DIY NX8048T070 800x480 is a powerful 18.1 cm (7 inch) HMI, which is a member of Nextion family. Features include: a 18.1 cm (7 inch) TFT 800x480 resistive touchscreen display, 16M Flash, 2KByte RAM, 65k colors. Features: Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino 800 x 480 Resolution RGB 65K true to life colors TFT Screen with integrated 4-wire Resistive Touch Panel 4 pin TTL serial interface 16M Flash memory for User Application Code and Data Onboard micro-SD card slot for firmware upgradation Visual Area: 15.41cm(L), 8.59cm(W) Adjustable Brightness: 0~230 nit, the interval of adjustment is 1% Recommended Power Supply: 5V, 2A, DC Certificates: CE/EMC, RoHS (certificates) Technical support For technical support, please open a ticket onItead Support System. Package Includes: 1 xNextion NX8048T070 Generic 7.0 HMI TFT LCD Touch Display 1 x Connecting Cable 1 x Power Supply Test Board Specifications :- Model No. NX8048T070 Display Type 011R(R:Resitive Touchscreen) Operating Voltage (VDC) 4.75 ~ 7 Max. Operating Current (mA) 510 Display Layout Size (L x W x H) cm 18.1 x 10.8 x 0.9 Net weight (gm) 270 Touch Type Resistive Colors 65K (65536) Recommended Power Supply 5V, 500mA, DC Working Temperature Range (C) -20 to 70 Working Humidity Range 10% to 90% RH USB Interface No Micro-SD Card Slot Yes (FAT32 format), support maximum 32G Micro SD Card Flash Memory 16 MB RAM 3584 BYTE
