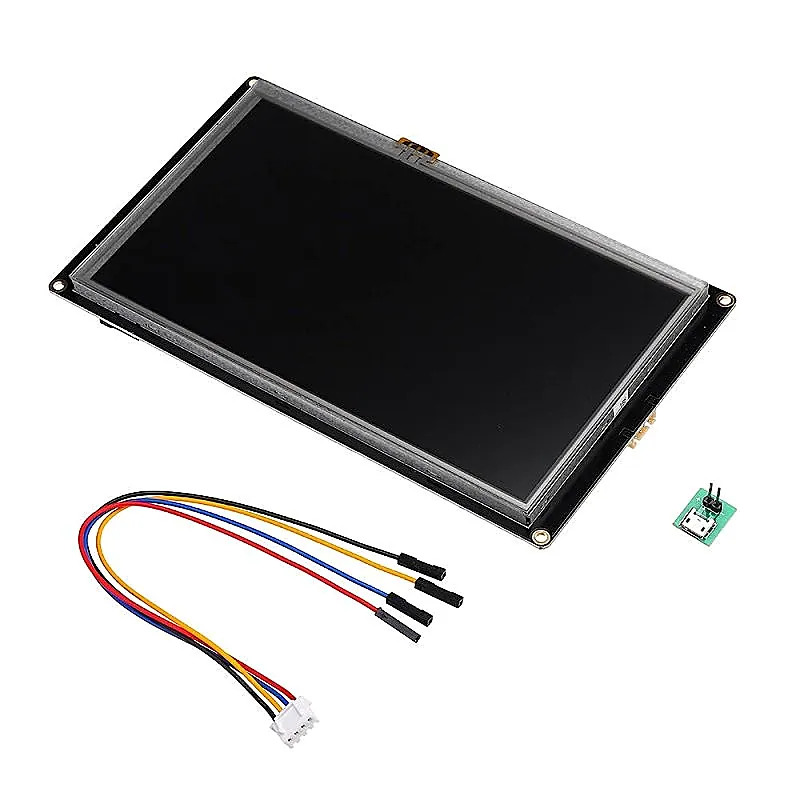

Nextion 7 inch Enhanced NX8048K070 HMI Touch Display

Nextion Enhanced NX8048K070 Generic 18.1 cm (7 inch) HMI Touch Display is more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity, and larger CPU clock. The enhanced Nextion series has 7 size covers from generic 2.4 to 7.0. Nextion Enhanced NX8048K070is a powerful 18.1 cm (7 inch) HMI TFT display, with 32MB Flash data storage space, 1024 byte EEPROM, 8192 byte RAM.With GPIO supported, now customers can use Nextion to control external devices. Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of Things (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tubes. Nextion includes a hardware part (a series of TFT boards) and a software part (theNextion editor).The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time on application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel, etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. Its easy to adapt Nextion family HMI to existing projects- users just need to provide it a UART. Features: Supports built-in RTC Supports GPIO SD Card interface: support max 32G Micro TF/SD card (FAT32 file format) Flash data storage space: 32MB EEPROM: 1024 bytes RAM: 8192 bytes Instruction buffer: 1024 bytes Color: 65K (65536) colors Resolution: 800 x 480 pixel Package includes: 1 x 7.0 Nextion Enhanced HMI Display 1 power supply test board 1 4-pin grove cable Specifications :- Backlight LED Working Temperature Range (C) -20 to 70 Model No. NX8048K070 Display Type NX8048K070 (Resistive touchscreen without enclosure) Operating Voltage (VDC) 4.75 ~ 7 Max. Operating Current (mA) 510 Net weight (gm) 268 Touch Type Resistive Colors 65K (65536) Recommended Power Supply 5V, 2.0A, DC Working Humidity Range 10% to 90% RH USB Interface No Micro-SD Card Slot Yes (FAT32 format), support maximum 32G Micro SD Card Flash Memory 32 MB RAM 8192 Byte Backlight Lifetime (Avg) >30,000 Hours Display Resolution 800480
