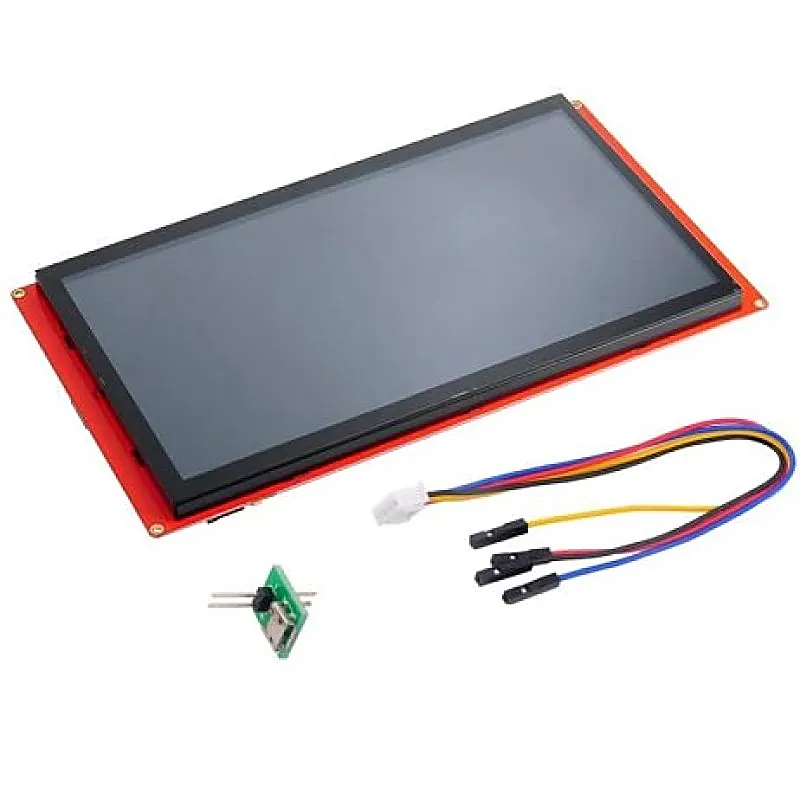

Nextion 18.1 cm (7 inch) Intelligent NX8048P070-011C HMI Capacitive Touch Display

Nextion is a Human Machine Interface solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider, etc.) and ASCII text-based instructions for coding how components interact at the display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text-based instructions. The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage, and SRAM compared with Basic Series and Enhanced Series. Whats more and new? The audio, video, and animation play functions enriches users project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move, and Drag .etc. Features: Nextion Type: Intelligent Series Nextion Models: NX8048P070-011C (18.1 cm capacitive touchscreen without enclosure) Built-in RTC support (Battery type: CR1220) Operating Voltage:5V(Typical) Operating Current: 430mA(VCC=+5V, Brightness is 100%) Package Includes: 1 x Nextion NX8048P070-011C HMI Display 1 x XH2.54 4P wire 1 x Power supply test board Specifications :- Model Name NX8048P070-011C Color 65K 65536 colors Layout size 18.1cm(L) x 10.8cm(W) x 0.93cm(H) Resolution 800 x 480 pixel Touch type Capacitive Touches > 1 million Backlight LED Backlight lifetime (Average) >30,000 Hours Brightness 300nit RAM Memory 512KB FLASH Memory 120 MB Instruction Buffer 1024 BYTE User Storage 1024 BYTE Weight 310g
