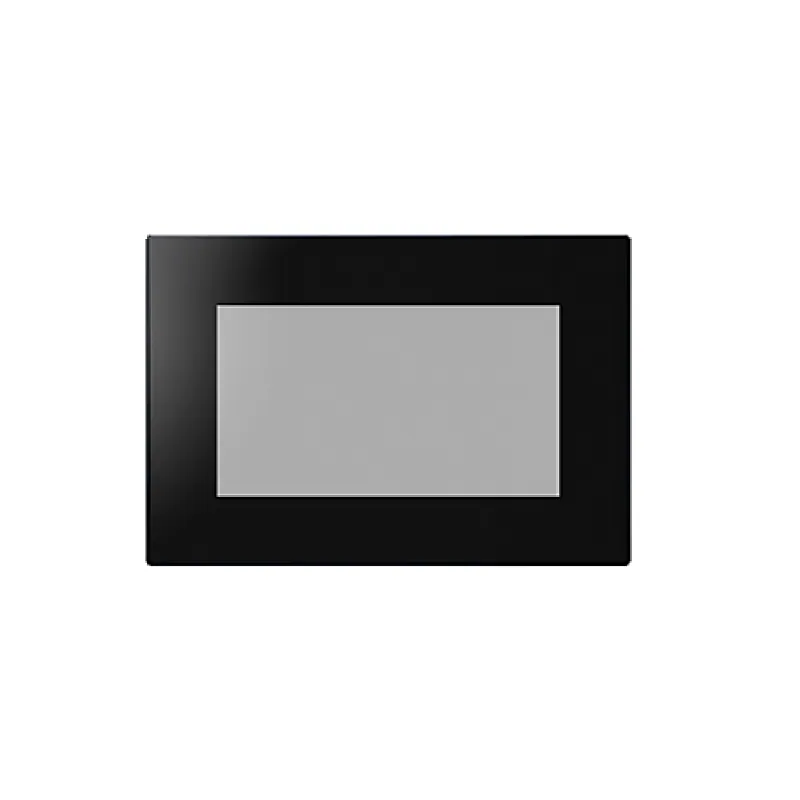

Nextion 18.1 cm (7 inch) Intelligent NX8048P070-011C-Y HMI Capacitive Touch Display with enclosure

Nextion is a Human Machine Interface HMI solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider, etc.) and ASCII text-based instructions for coding how components interact on the display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text-based instructions. The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage, and SRAM compared with Basic Series and Enhanced Series. Whats more and new? The audio, video, and animation play functions enrich the users project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move, and Drag .etc. Note: The small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. Features: Nextion Display Type: Intelligent Series Nextion Model: NX8048P070-011C-Y (18.1 cm resistive touchscreen with enclosure) Built-in RTC support (Battery type: CR1220) Operating Voltage:5V-6.5V Operating Current: 530mA(VCC=+5V, Brightness is 100%). Package Includes: 1 x Power Supply Test Board 1 x XH2.54 4P Wire 1 x Nextion 18.1 cm (7 inch) Intelligent NX8048P070-011C-Y HMI Capacitive Touch Display with enclosure Specifications :- Model NX8048P070-011C-Y Operating Voltage (VDC) 5 Max. Operating Current (mA) 530 Screen With Enclosure Size 21.8cm(L) x 15cm(W) x 2.25cm(H) Screen Size 18.10cm(L) x 10.8cm(W) x 0.93cm(H) Resolution 800 x 480 pixel Touch Type Capacitive Touches > 1 million Backlight LED Backlight Lifetime (Average) >30,000 Hours Brightness 300nit Weight (g) 470
