ODROID-H3 Single Board Computer

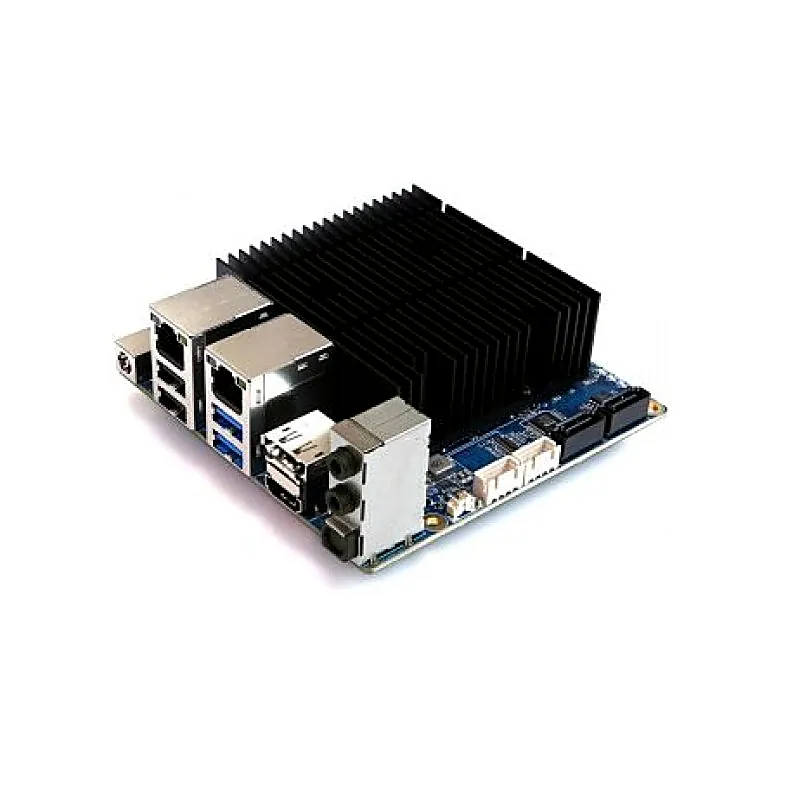

This is a ODROID-H3 Single Board Computer. We are pleased to inform you that Hardkernel has now brought back the ODROID H-series with not just one, but two new single-board computers based on 10nm Intel Jasper Lake quad-core CPUs: the ODROID-H3 and ODROID-H3+ SBCs. The ODROID-H3 is powered by a 2.9 GHz Intel Celeron N5105 quad-core processor with 24EU Intel UHD graphics @ up to 800 MHz while the ODROID H3+ is based on a 3.3 GHz Pentium N6005 quad-core processor with 32EU Intel UHD graphics @ 900 MHz. All other features seem to be the same for the two; they both support up to 64GB RAM, have the same M.2 PCIe Gen 3 socket, and the same 2x 2.5 GbE, 2x SATA ports, 2x USB 3.0 and 2x USB 2.0. A. CPU (Intel Pentium Silver N6005) B. 2 x DDR4 SO-DIMM slots (Dual channel memory support) C. 1 x M.2 PCI Express Module Socket (NGFF-2280) D. 1 x eMMC (Embedded Multimedia-Card) Socket E. 2 x SATA Power Connectors (2.5mm pitch,JST-XHcompatible connector) F. 2 x SATA3 6.0 Gb/s Data Connectors G. 1 x DC Power Jack H. 2 x USB 3.0 I. 2 x USB 2.0 J. 1 x HDMI 2.0 K. 1 x DisplayPort 1.2 L. 2 x RJ45 Ethernet Ports (10/100/1000/2500) M. 5 x System LED Indicators N. 1 x Peripheral Expansion Header (24-pin) O. 1 x Power Switch P. 1 x Reset Switch Q. 1 x Backup Battery Connector (2-pin) R. 1 x Active Cooling Fan Connector (4-pin) S. 1 x Audio out, 1 x Audio in, 1 x SPDIF out Features: Intel Quad-Core Processor Jasper Lake N5105 has a base clock of 2GHz and a boost clock of 3.3GHz with 1.5 MB L2 and 4 MB L3 cache by a 10 nm process. Up to 64GB Dual-channel Memory DDR4 PC4-23400 (2933MT/s) Two SO-DIMM slots, up to 32GB per slot PCIe 3.0 x 4 lanes for one M.2 NVMe storage 2 x 2.5Gbit Ethernet ports 2 x SATA 3.0 ports SSE4.2 accelerator (SMM, FPU, NX, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES) Intel UHD Graphics 32 EUs Turbo 900MHz HDMI 2.0 and DP 1.2 multiple video outputs A configurableUnlimited Performance mode allows the CPU to run in sustained turbo boost mode. RTC / BIOS backup battery is included Useful Links: Installation Getting Started Package Includes: 1 x ODROID-H3 Single Board Computer Attachments : Download
