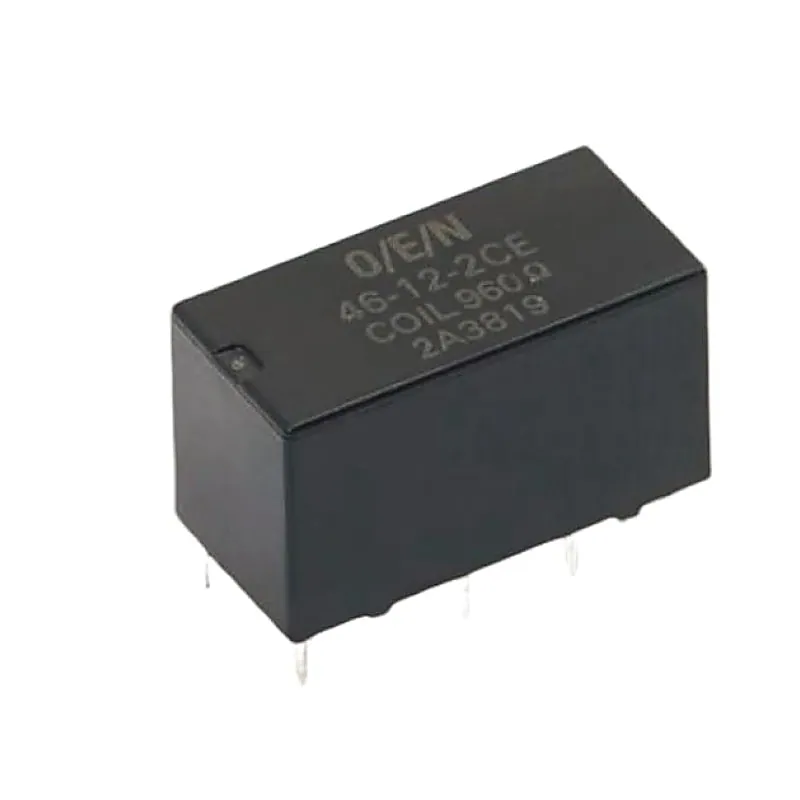

OEN 12V 2A DC 46-12-CE 8 Pin DPDT PCB Mount Telecom Relay
OEN 12V 2A DC 46-12-CE 8 Pin DPDT PCB Mount Telecom Relay
OEN 12V 2A DC 46-12-CE 8 Pin DPDT PCB Mount Telecom Relay Features: Voltage : 125 VAC / 30 VDC Maximum switching voltage : 240 VAC / 120 VDC Low power consumption. Nominal voltage : 12 V Switching current max : 1A AC \ 2A DC Up to : 2C-2 form c contact Dust proof Contact material : Silver alloy (8)
+ 18% GST (added at checkout)
In stock — 957 units ready
- Voltage : 125 VAC / 30 VDC
- Maximum switching voltage : 240 VAC / 120 VDC
- Low power consumption.
- Nominal voltage : 12 V
- Switching current max : 1A AC \ 2A DC
- Up to : 2C-2 form c contact
- Dust proof
- Contact material : Silver alloy (8)
- Working temperature: -45 degree C To 55 degree C
- Contact Arrangement : 2 Form C
- Contact Material: Silver Alloy + Gold clad
- Rated Voltage : 125 VAC / 30 VDC
- Max. Switching Voltage : 240 VAC / 120 VDC
- Max. Continuous Current : 1A AC / 2A DC
- Max. Power Rating : 125 VA
- Nominal Coil Power : 0.15 W
- Contact Resistance (Initial) : 50 ml/ Ohms
- Dielectric Strength between Contact and Coil : 1000 VRMS
- Dielectric Strength between Open Contact : 1000 VRMS
- Insulation Resistance : 100 Mega Ohms at 500 VDC, 25 degree C, RH50
- Operate time at Nominal Voltage : 5 ml/sec
- Release time at Nominal Voltage : 5 ml/sec
- Ambient Temperature : -45 degree C to +85 degree C
- Weight : 5 gm
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
OEN 12V 2A DC 46-12-CE 8 Pin DPDT PCB Mount Telecom Relay Features: Voltage : 125 VAC / 30 VDC Maximum switching voltage : 240 VAC / 120 VDC Low power consumption. Nominal voltage : 12 V Switching current max : 1A AC \ 2A DC Up to : 2C-2 form c contact Dust proof Contact material : Silver alloy (8) Working temperature: -45 degree C To 55 degree C Specifications: Contact Arrangement : 2 Form C Contact Material: Silver Alloy + Gold clad Rated Voltage : 125 VAC / 30 VDC Max. Switching Voltage : 240 VAC / 120 VDC Max. Continuous Current : 1A AC / 2A DC Max. Power Rating : 125 VA Nominal Coil Power : 0.15 W Contact Resistance (Initial) : 50 ml/ Ohms Dielectric Strength between Contact and Coil : 1000 VRMS Dielectric Strength between Open Contact : 1000 VRMS Insulation Resistance : 100 Mega Ohms at 500 VDC, 25 degree C, RH50 Operate time at Nominal Voltage : 5 ml/sec Release time at Nominal Voltage : 5 ml/sec Ambient Temperature : -45 degree C to +85 degree C Weight : 5 gm Package Includes: 1 x OEN 12V 2A DC 46-12-CE 8 Pin DPDT PCB Mount Telecom Relay
