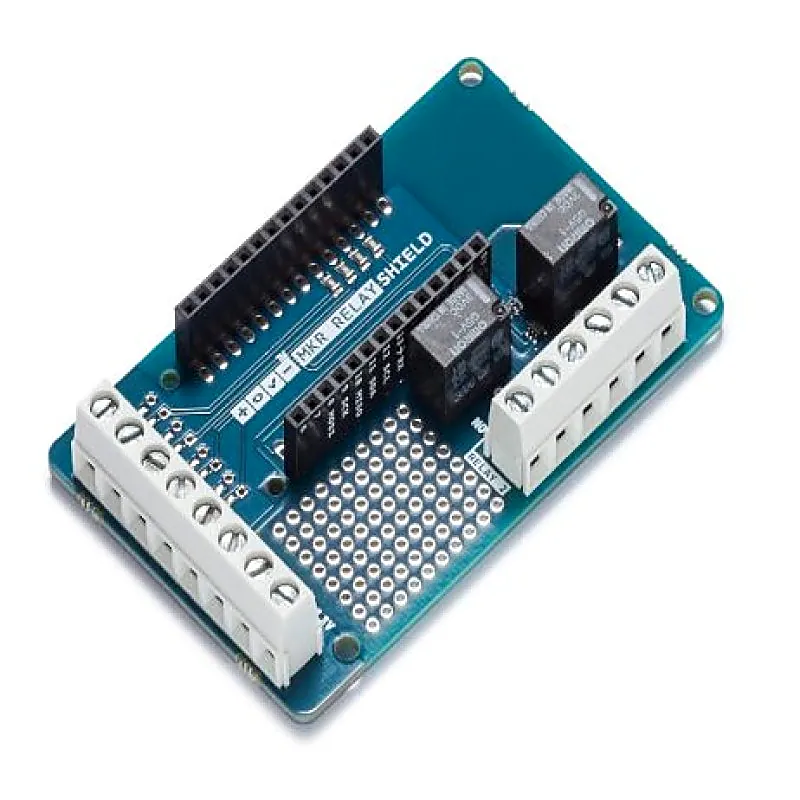

Official Arduino MKR Relay Proto Shield TSX00003

The MKR Relay Proto Shield allows you to easily command relays with your MKR board. The shield provides two onboard relays and a small prototyping area if you need to add some other component to your project. The MKR Relay Protoshield allows you to easily add relays to your MKR board-based project. The shield provides two relays called RELAY1 and RELAY2 commanded by pin 1 and pin 2respectively. The shield also provides an easy connection utilizing screw terminal blocks to A1 to A4 analog inputs, I2C, and supply voltages. Use your MKR board on Arduinos IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things. Features: Two relays with NO , COM, and NC connections Works with battery-powered board 8 positions screw terminal blocks for easy connections with A1 to A4 Analog input, SCL SDA for I2C, GND and 3.3V output 6 positions screw terminal blocks (NO, COM, NC for each relay) Proto area Package Includes: 1 x Official Arduino MKR Relay Proto Shield TSX00003 Attachments : Download Download
