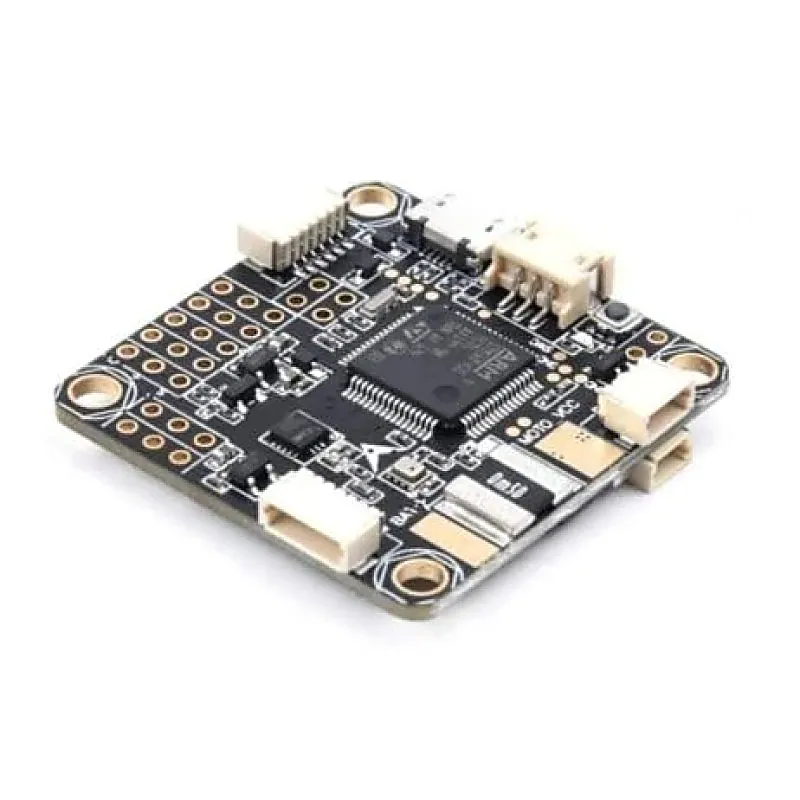

OMNIBUS F4 Flight Controller with OSD + BEC

The OMNIBUS F4 Flight Controller with OSD and BEC is a compact and efficient flight controller designed for FPV racing drones and DIY drone enthusiasts. It features an STM32 F405 microcontroller, ensuring high processing speed and compatibility with Betaflight firmware. The built-in On-Screen Display (OSD) allows real-time telemetry data overlay, enhancing the pilots situational awareness. Additionally, the integrated BEC module simplifies power distribution by providing a stable 5V output, eliminating the need for an external BEC. With a size of 36x36mm and mounting holes at 30.530.5mm, it is compatible with a wide range of drone frames. The inclusion of an SD card slot enables black box logging for flight data analysis. This flight controller is suitable for pilots seeking a reliable and feature-rich solution for their FPV drone builds Features: Processor: 168 MHz ARM Cortex M4 with single-precision FPU. Memory: 192 KB SRAM and 1 MB FLASH. Sensors: MPU6000 accelerometer/gyroscope and BMP280 barometer. Connectivity: Supports S.BUS, S.BUS2, DSM2, DSMX, Graupner SUMD, PPM, and Yuneec ST24 receivers. PWM Outputs: One Shot PWM out (configurable). Current Sensor: Built-in current sensor. OSD: Integrated OSD chip (AB7456 via SPI). Package Includes: 1 x OMNIBUS F4 Flight Controller with OSD + BEC
