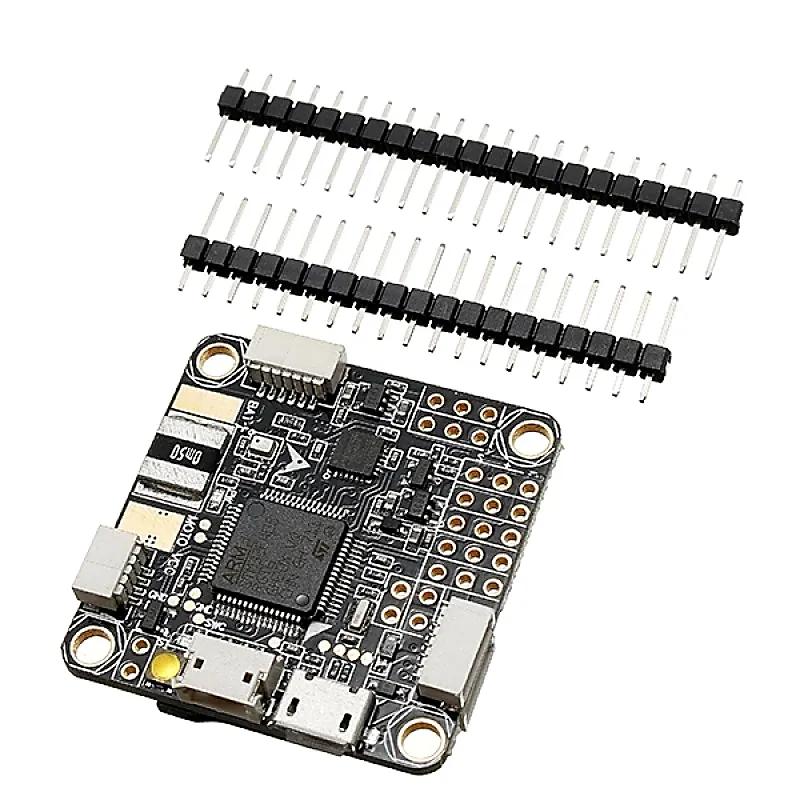

OMNIBUS F4 Pro V3 Flight Controller

OMNIBUS F4 Pro V3 Flight Controller is an upgraded version of OMNIBUS F4. In OMNIBUS F4 Pro V3 Flight Controller added SD card supports, also it has 5v3A BEC, LC filter for Camera and VTX, build-in Current/Voltage sensor for highIntegration Frame OMNIBUS F4 PRO V3 was designed a 35mmx35mm (30.5mm mount holes) community version of his AIO boards. Its called Flip32 OMNIBUS and its outstanding. The great thing is that the board is based on what the community really wanted and it allows a very clean build by providing pin holes for almost every connection. You can power it directly from your battery by using BAT/GND pins. Note: Images of the product may differfrom actual product in terms of Color and Notations Features: STM32 F403 MCU (Spi connected to Gyro) Built-in Current/Voltage sensor! Firmware hex =OMNIBUSF4SD hex from the drop-down. MPU6000 (the 6 axis SPI Gyrometer + Accelerometer) Smart audio capable VTX PID Programming D- Shot Supported (no Modification) OSD (configured over Betaflight UI) SD CARD Slot for BlackBox SBUS/PPM + DSMX Ports SmartAudio V2 via J10 current + voltage + rssi + buzzer as pins 4x 3 pin holes for ESCs + 4x signal pin holes IR pins for lap timing transponder Package Includes: 1 xOMNIBUS F4 Pro V3 Flight Controller Board 1 x Connecting Cable 1 x 6*3 Berg Pins (Right-Angle) 1 x6*3 Berg Pins (Straight) 1 x6*2 Berg Pins (Straight) Attachments : Download
