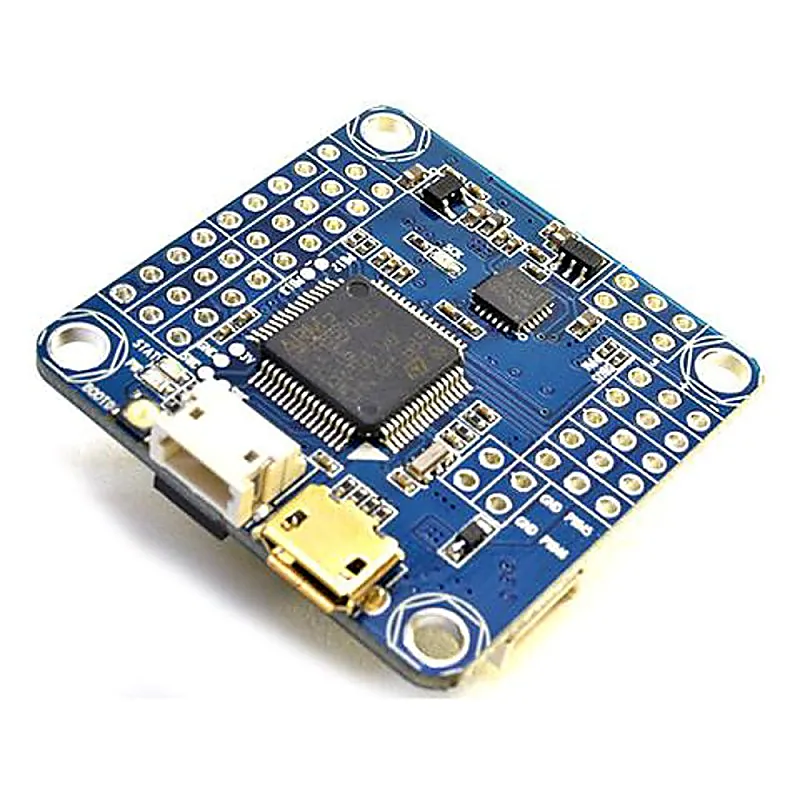

Omnibus F4 V2 PRO Flight Controller with Built-in OSD

The Omnibus F4 V2 PRO Flight Controller with Built-in OSD has the F4 processor, built-in OSD, video filtering, and LDO. Tuning could not be easier with the help of the black box and tuning via the transmitter in the OSD. The Flip32 Omnibus flight controller uses the MPU6000 over SPI for the best possible flight performance. Along with the MPU6000 are a and an AB7456 OSD chip (an upgraded MAX7456) for the beta flight integrated OSD. You wont need a PDB with this build because there is a high-performance 5v, 1.5a STMicrocontroller L78 voltage regulator, so you can plug the flight battery right into the flight controller. The Flip32 Omnibus flight controller the first F4 flight controller with a MAX7456 OSD chip directly connected to the flight controller, so it can be configured from the beta flight configurator. This is the standard version, based on F405 Microprocessor, includes 128Mbit Flash memory. This flight controller is supported by Beta flight (3.0.1 and up), Race light and D-ronin. This flight controller requires BetaFlight 3.0 & Beta flight configurator to take full advantage of the OSD Install The Beta flight Configurator. New OSD Tab In Beta Flight Configurator Lets You Set Up And Configure OSD Settings On The Fly! Features: STM32 F405 MCU Runs Beta flight (3.0.1 and up) Race light and D-ronin firmware SBUS/PPM input (Pinheaders) 6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders) Only 36x36mm, mount holes 30.530.5mm SPI Sensor MPU6000 128Mbit Flash Memory Package Includes: 1 xOmnibus F4 V2 PRO Flight Controller with Built-in OSD 1 x 3 line Servo Cable 2 x Burg Connectors
