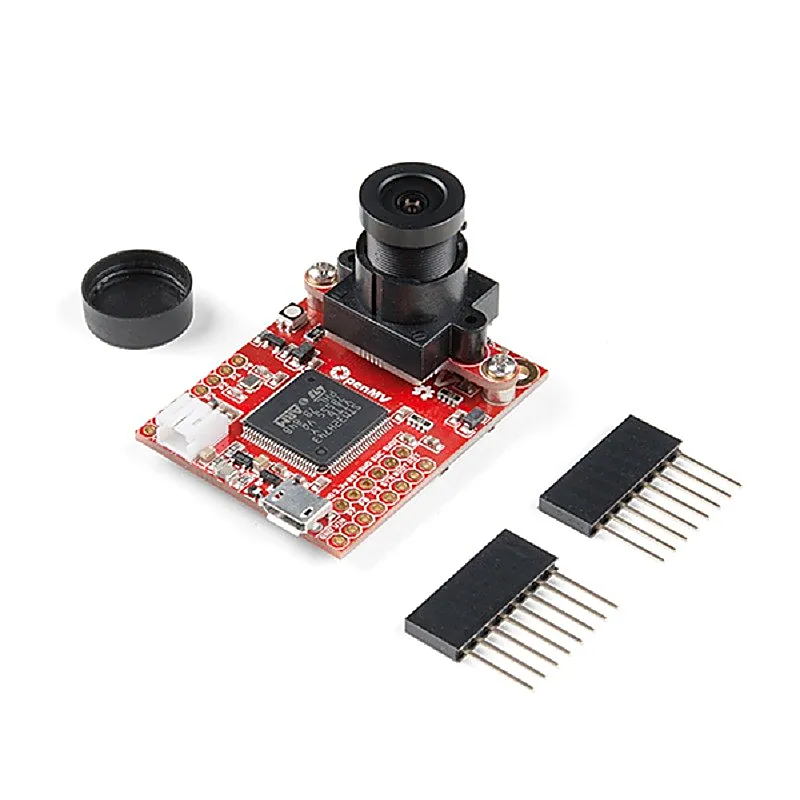

OpenMV Cam H7 A Machine Vision Camera Module

The OpenMV Cam H7 is a small, low power, microcontroller board that allows you to easily implement applications using machine vision in the real world. You program the OpenMV Cam in high-level Python scripts (courtesy of the MicroPython Operating System) instead of C/C++. This makes it easier to deal with the complex outputs of machine vision algorithms and working with high-level data structures. But, you still have total control over your OpenMV Cam and its I/O pins in Python. You can easily trigger taking pictures and videos on external events or execute machine vision algorithms to figure out how to control your I/O pins. The OV7725 image sensor is capable of taking 640480 8-bit grayscale images or 640480 16-bit RGB565 images at 60 FPS when the resolution is above 320240 and 120 FPS when it is below. Most simple algorithms will run at above 30 FPS. Your OpenMV Cam comes with a 2.8mm lens on a standard M12 lens mount. If you want to use more specialized lenses with your OpenMV Cam you can easily buy and attach them yourself. Documentation: To download OpenMV cam H7 (Source Code), click here and for OpenMV Cam H7 firmware files, click here. Applications: Frame Differencing. Color Tracking. Marker Tracking. Face Detection. Eye Tracking. Optical Flow. QR Code Detection/Decoding. Data Matrix Detection/Decoding. Linear Barcode Decoding. AprilTag Tracking. Line Detection. Circle Detection. Rectangle Detection. Template Matching. Image Capture. Video Recording.
