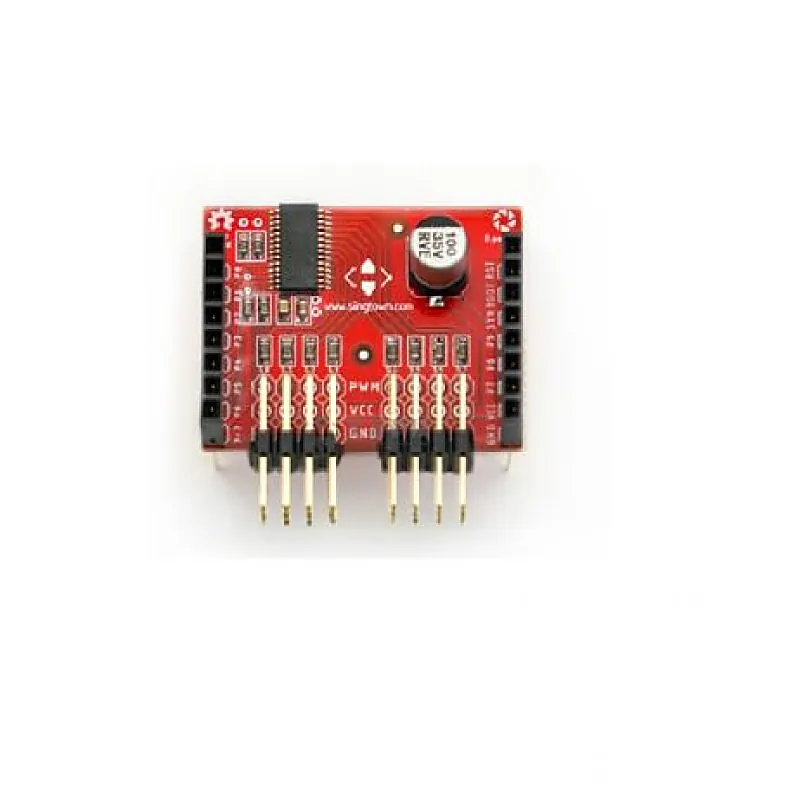

OpenMV Servo Shield
OpenMV Servo Shield
The Servo Shield enables OpenMV cameras to control up to 8 servos in parallel. It features the PCA9685 Servo Controller which also supports general-purpose PWM. The OpenMV software and IDE includes scripts for controlling the chip for general-purpose PWM and controlling servos. Diagram : Application
+ 18% GST (added at checkout)
In stock — 1 units ready
- Self-driving cars.
- Driving RGB LED
- Support pan-tilt kits.
- PCA9685 controller.
- 8-channel, 12-bit PWM.
- I2C-bus controlled.
- Internal power-on reset.
- Internal 25MHz oscillator
- Operating supply voltage range of 2.3 V to 5.5 V.
- Low standby current.
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The Servo Shield enables OpenMV cameras to control up to 8 servos in parallel. It features the PCA9685 Servo Controller which also supports general-purpose PWM. The OpenMV software and IDE includes scripts for controlling the chip for general-purpose PWM and controlling servos. Diagram : Applications: Self-driving cars. Driving RGB LED Support pan-tilt kits. Features: PCA9685 controller. 8-channel, 12-bit PWM. I2C-bus controlled. Internal power-on reset. Internal 25MHz oscillator Operating supply voltage range of 2.3 V to 5.5 V. Low standby current. Package Includes: 1 x OpenMV Servo Shield
