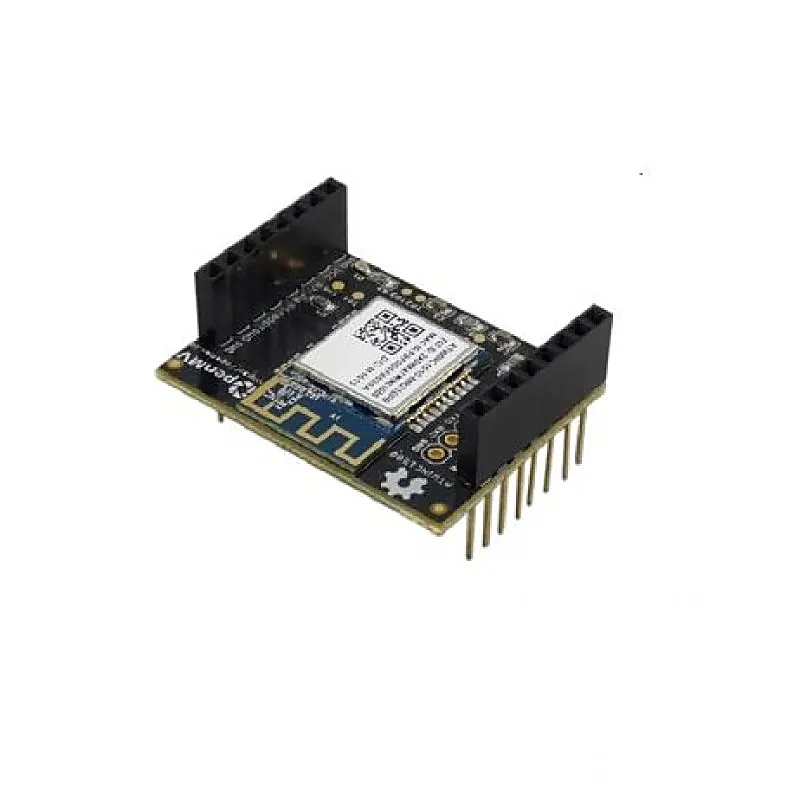

OpenMV WiFi Shield

The ATWINC1510-MR210xB is a low power consumption 802.11 b/g/n IoT (Internet of Things) module,specifically optimized for low power IoT applications. The module integrates Power Amplifier (PA), Low-Noise Amplifier (LNA), Switch, Power Management, and a printed antenna or a micro co-ax (u.FL) connector for an external antenna resulting in a small form factor (21.7 x 14.7 x 2.1 mm) design. It is interoperable with various vendors 802.11 b/g/n access points. This module provides SPI ports to interface with a host controller. Application : The WiFi Shield is great for turning your OpenMV Cam into a Web Cam. With the WiFi Shield youll be able to stream JPEG compressed images to connecting Web Browsers like FireFox. Once the WiFi Shield is connected to the internet youll be able to send and receive data over TCP/UDP ports using MicroPythons BSD socket low-level network interface. Features: IEEE 802.11 b/g/n 20 MHz (11) solution Single spatial stream in 2.4 GHz ISM band Integrated Transmit/Receive switch Integrated PCB antenna or u.FL micro co-ax connector for external antenna Superior sensitivity and range via advanced PHY signal processing Advanced equalization and channel estimation Advanced carrier and timing synchronization Wi-Fi Direct (supported till firmware release 19.5.2) Soft-AP support Supports IEEE 802.11 WEP, WPA, WPA2 security Support Enterprise security with WPA/WPA2 (802.1X)(1) EAP-TLS EAP-PEAPv0/1 with TLS EAP-TTLSv0 with MSCHAPv2 EAP-PEAPv0/1 with MSCHAPv2 Superior MAC throughput via hardware accelerated two-level A-MSDU/A-MPDU frame aggregation and block acknowledgment On-chip memory management engine to reduce host load SPI host interface Package Includes: 1 x OpenMV WiFi Shield
